PN-ME Series Essential Large Format Displays
Professional 4K touchscreen displays, available in sizes in sizes from 43" to 98".
Create pixel-perfect imagery at a cost-conscious price point with the new fully commercial Sharp ME Series large format displays. By focusing on bringing high-powered, integrated and easy-to-use media playback to your business, the ME series gives you a reliable mainstream display to fit all of your digital signage needs.
Price on Application.

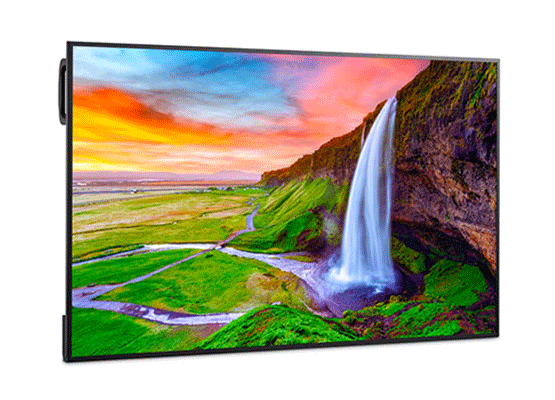

Sharp PN-ME Series Large Format Displays
Powerful, Commercial-Grade Displays for Signage & Presentation
For best-in-class visual performance and value, the second generation ME series commands feature-rich professional capabilities for meeting rooms and signage applications. The multi-functional Sharp MultiSync® displays with high haze panel, native USB-C connectivity, and quick input detection appeals to Enterprise users for Bring Your Own Device simplicity, supporting hybrid workflows and spontaneous meetings.
An integrated System on Chip (SoC) with Android 13 CTS-compliant Operating System brings the most up to date features and security, powering signage applications and commanding high compatibility with CMS partners, making the multi-purpose Sharp MultiSync® ME series suitable for cost sensitive retail signage applications. Experience seamless access to Android apps and install apps directly on the display using the integrated browser, without the hassle and expense of an additional external media player.
Trusted long-life reliability is assured through Japanese engineering standards and high-quality components. The Sharp MultiSync® ME series is a class-leading solution for today’s workplace challenges, bringing value and professional performance, without compromise.
Technical Highlights
- Brightness: Up to 450 cd/m²
- Contrast Ratio: Up to 5000:1
- Viewing Angle: 178°
- Built-in Speakers: 2 x 10W

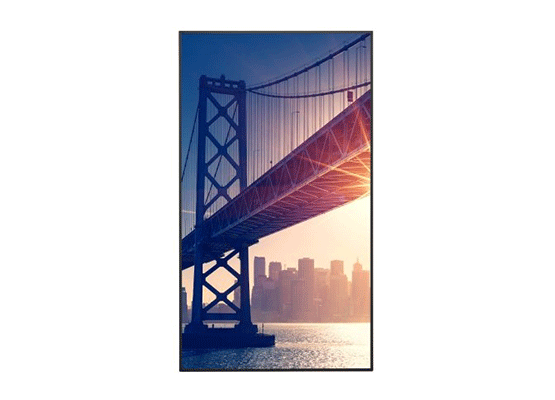

- Orientation: Landscape & Portrait
- Runtime: 18 hours/day, 7 days/week
- Warranty: 3-year warranty
Sizes Available
PN-ME432 – 43"
PN-ME502 – 50"
PN-ME552 – 55"
PN-ME652 – 65"
PN-ME752 – 75"
PN-ME862 – 86"
PN-ME982 – 98"
Ideal for:
Retail
Captivate shoppers with rich, high-resolution digital signage for promotions, menus, and branding. Easily update content via USB or schedule it in advance through the onboard media player.

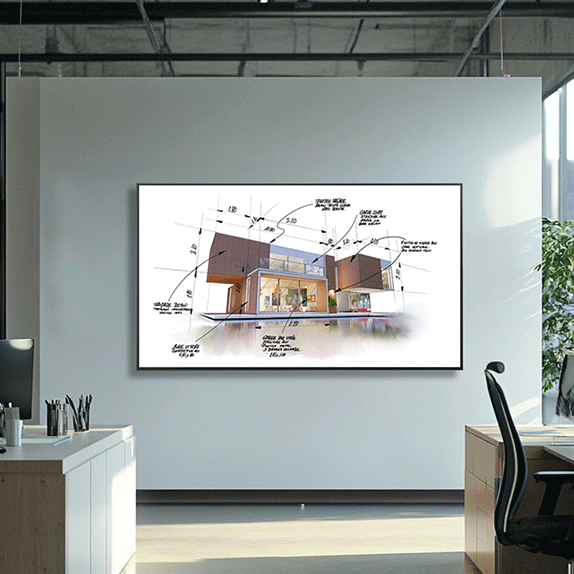

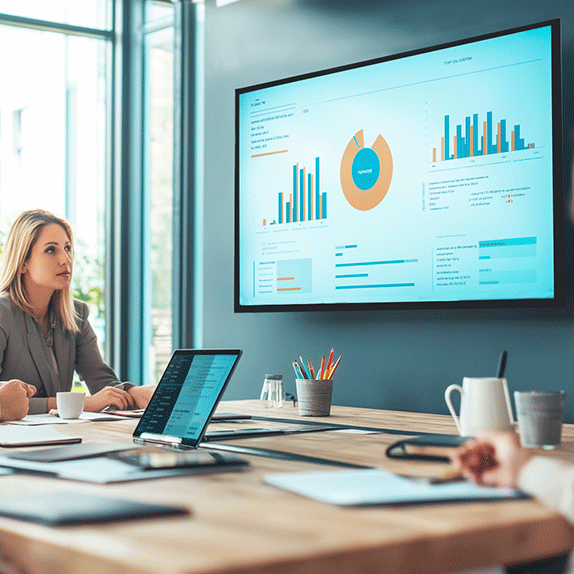

Corporate Offices & Lobbies
Display meeting schedules, announcements, company messaging, or dashboards with crisp visuals and uninterrupted uptime.
Educational Institutions
Ideal for lecture halls, hallways, and common areas—perfect for displaying notices, timetables, and multimedia content.
Transportation & Wayfinding
Designed for 18/7 usage in high-traffic areas such as airports, train stations, and venues. Durable, clear, and always on when you need it.
Healthcare & Public Sector
Deploy in waiting areas, information counters, or public buildings to communicate updates, health messaging, or emergency alerts.
Key Features
Stunning 4K UHD with HDR Support: Native 3840 x 2160 resolution and full HDR compatibility (HDR10, PQ, HLG) bring your content to life with vibrant colours, deep contrast, and exceptional clarity—even in brightly lit spaces thanks to anti-glare, high-haze panels.
- Powered by Android 13: With a powerful system-on-chip running Android 13, users can easily manage content, install Android apps (APK), and access web-based platforms—without the need for an external media player or PC.
- Integrated Media Player & Home Screen: Schedule playlists, load content via USB or internal storage, and manage everything through a visual launcher home screen with access to browser, file explorer, and input selection.

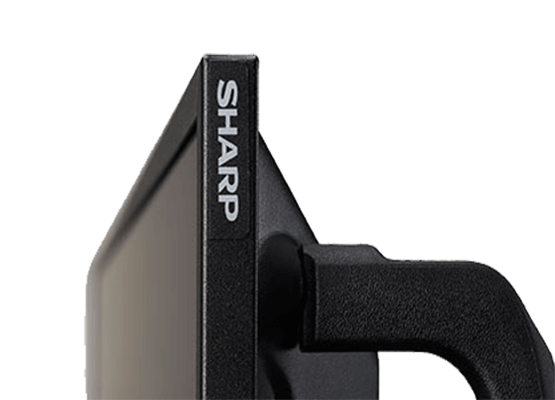

- Lightweight, Full Metal Design: Commercial-grade full metal chassis with integrated handles makes installation easier and more secure. Units are up to 33% lighter than previous models for greater flexibility and reduced strain during setup.

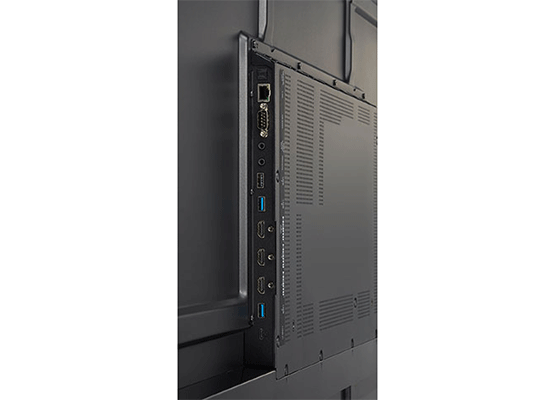

- Robust Connectivity: Includes 3x HDMI 2.0, USB-C with DP Alt Mode, USB 3.0, LAN, RS-232C, IR input, and more. The integrated USB hub supports peripheral control and reduces the need for additional hardware.
- Smart Input Detection: Automatically switches to the next available prioritized input source if the primary connection is lost—ensuring your content is always displayed with zero downtime.
- Integration with Sharp e-Signage: The PN-ME range has a built-in viewer license for Sharp's powerful e-Signage Digital signage software.
Specifications
| LCD Module | |
| Panel Technology | LCD |
| Viewable Image Size | 941.18 x 529.42mm |
| Native Resolution | 3840 x 2160 |
| Brightness (Typical) | 400 cd/m2 |
| Contrast Ratio (Typical) | 1200:1 |
| Viewing Angle | 178° Vert., 178° Hor. (89U/89D/89L/89R) @ CR>10 |
| Aspect Ratio | 16:9 |
| Colour Gamut | 68% NTSC |
| Displayable Colours | Over 1.07 Billion (8 bit + FRC) |
| Orientation | Landscape and Portrait (CW Rotation) |
| Panel Haze (%) | 25 (Anti-Reflective) |
| Runtime | 18/7 |
| Connectivity Input Terminals | |
| Digital | HDMI 2.0 x3, USB-C x1 (DP-Alt Mode Supported) |
| Analog | N/A |
| Audio | N/A |
| External Control | LAN (1000Mbit), 3.5mm Mini Jack IR Remote, RS-232C |
| Data | USB 3.0 x1 (5V/0.9A, Downstream), USB 2.0 x1 (5V/0.5A, Downstream), USB 3.0 (Downstream for USB-C), USB-C x1 (Upstream) |
| Connectivity Output Terminals | |
| Digital | N/A |
| Analog | N/A |
| Audio | 3.5mm Mini Jack, Optical Audio Out (SPDIF) |
| External Control | N/A |
| Power Consumption | |
| On (Typ/Max Brightness/All Max) | 90W / 110W / 175W |
| Network Standby | 2W |
| Normal Standby | <0.5W |
| Current Rating | 2.2 - 0.9A @ 100V - 240V |
| Speaker Rating | Integrated 10W x 10W |
| Physical Specifications | |
| Bezel Width (L/R, T/B) | 9.9mm / 9.9mm / 9.9mm / 9.9mm |
| Net Dimensions (without Stand; W x H x D) | 964.6 x 552.5 x 62.0mm |
| Net Weight | 9.4kg |
| VESA Hole Configuration | 4x M6 x 14mm (200 x 200) |
| Internal Player | |
| Operating System | Android 13 |
| Processor | ARM Cortex-A55 1.5GHz Quad Core CPU |
| Storage | 32GB ROM (Total Capacity of Storage including OS) |
| Memory | 4GB |
| Sensors | |
| Ambient Light Sensor | Integrated |
| Temperature Sensor | Integrated |
| NFC Sensor | N/A |
| Environmental Conditions | |
| Operating Temperature | 0° - 40° C |
| Operating Humidity | 20-80% |
| Operating Altitude | 5,000m (16,405ft) |
| Additional Specifications | |
| Limited Warranty | 3-Year RTB |
| Additional Features | AMX Support, Automated Email Alert Function, CEC Support through all HDMI Connections, ARC through HDMI1, Display Browser Control, Display Wall Calibrator Compatible, E-Share Trial License Included (FW R1.5.17 and newer), HDR Compatible (PQ, HLG, HDR10), Updated OSD Design, Android Operating System/Media Player , NaViSet Administrator 2 Compatible, Screen Rotation for Portrait (Home only), Powered USB Ports, Real Time Clock, Full Scheduler, Quick Start, TileMatrix (5x5), Crestron Connected V2, SNMP, Integrated Temperature sensor, Full Input Detect Functionality (First, Last, Custom), Integrated Ambient Light Sensor, Programmable Gamma, Color Temperature Adjustment (2600K - 10000K), Energy Star 8.0, Vacation Switch |
| Ships With | 3m AC Power Cord, 2.0m HDMI Cable, IR Remote Control, Batteries, AAA batteries |
Specifications
| LCD Module | |
| Panel Technology | LCD |
| Viewable Image Size | 1095.84 x 616.41mm |
| Native Resolution | 3840 x 2160 |
| Brightness (Typical) | 450 cd/m2 |
| Contrast Ratio (Typical) | 5000:1 |
| Viewing Angle | 178° Vert., 178° Hor. (89U/89D/89L/89R) @ CR>10 |
| Aspect Ratio | 16:9 |
| Colour Gamut | 68% NTSC |
| Displayable Colours | Over 1.07 Billion (8 bit + FRC) |
| Orientation | Landscape and Portrait (CW Rotation) |
| Panel Haze (%) | 25 (Anti-Reflective) |
| Runtime | 18/7 |
| Connectivity Input Terminals | |
| Digital | HDMI 2.0 x3, USB-C x1 (DP-Alt Mode Supported) |
| Analog | N/A |
| Audio | N/A |
| External Control | LAN (1000Mbit), 3.5mm Mini Jack IR Remote, RS-232C |
| Data | USB 3.0 x1 (5V/0.9A, Downstream), USB 2.0 x1 (5V/0.5A, Downstream), USB 3.0 (Downstream for USB-C), USB-C x1 (Upstream) |
| Output Terminals | |
| Digital | N/A |
| Analog | N/A |
| Audio | 3.5mm Mini Jack, Optical Audio Out (SPDIF) |
| External Control | N/A |
| Power Consumption | |
| On (Typ/Max Brightness/All Max) | 85W / 105W / 170W |
| Network Standby | 2W |
| Normal Standby | <0.5W |
| Current Rating | 2.0 - 0.8A @ 100V - 240V |
| Speaker Rating | Integrated 10W x 10W |
| Physical Specifications | |
| Bezel Width (L/R, T/B) | 9.9mm / 9.9mm / 9.9mm / 9.9mm |
| Net Dimensions (without Stand; W x H x D) | 1118.6 x 639.2 x 62.0mm |
| Net Weight | 11.7kg |
| VESA Hole Configuration | 4x M6 x 14mm (400 x 400) |
| Internal Player | |
| Operating System | Android 13 |
| Processor | ARM Cortex-A55 1.5GHz Quad Core CPU |
| Storage | 32GB ROM (Total Capacity of Storage including OS) |
| Memory | 4GB |
| Sensors | |
| Ambient Light Sensor | Integrated |
| Temperature Sensor | Integrated |
| NFC Sensor | N/A |
| Environmental Conditions | |
| Operating Temperature | 0° - 40° C |
| Operating Humidity | 20-80% |
| Operating Altitude | 5,000m (16,405ft) |
| Additional Specifications | |
| Limited Warranty | 3-Year RTB |
| Additional Features | AMX Support, Automated Email Alert Function, CEC Support through all HDMI Connections, ARC through HDMI1, Display Browser Control, Display Wall Calibrator Compatible, E-Share Trial License Included (FW R1.5.17 and newer), HDR Compatible (PQ, HLG, HDR10), Updated OSD Design, Android Operating System/Media Player , NaViSet Administrator 2 Compatible, Screen Rotation for Portrait (Home only), Powered USB Ports, Real Time Clock, Full Scheduler, Quick Start, TileMatrix (5x5), Crestron Connected V2, SNMP, Integrated Temperature sensor, Full Input Detect Functionality (First, Last, Custom), Integrated Ambient Light Sensor, Programmable Gamma, Color Temperature Adjustment (2600K - 10000K), Energy Star 8.0, Vacation Switch |
| Ships With | 3m AC Power Cord, 2.0m HDMI Cable, IR Remote Control, Batteries, AAA batteries |
Specifications
| LCD Module | |
| Panel Technology | LCD |
| Viewable Image Size | 1209.60 x 680.40mm |
| Native Resolution | 3840 x 2160 |
| Brightness (Typical) | 450 cd/m2 |
| Contrast Ratio (Typical) | 1200:1 |
| Viewing Angle | 178° Vert., 178° Hor. (89U/89D/89L/89R) @ CR>10 |
| Aspect Ratio | 16:9 |
| Colour Gamut | 68% NTSC |
| Displayable Colours | Over 1.07 Billion (8 bit + FRC) |
| Orientation | Landscape and Portrait (CW Rotation) |
| Panel Haze (%) | 25 (Anti-Reflective) |
| Runtime | 18/7 |
| Connectivity Input Terminals | |
| Digital | HDMI 2.0 x3, USB-C x1 (DP-Alt Mode Supported) |
| Analog | N/A |
| Audio | N/A |
| External Control | LAN (1000Mbit), 3.5mm Mini Jack IR Remote, RS-232C |
| Data | USB 3.0 x1 (5V/0.9A, Downstream), USB 2.0 x1 (5V/0.5A, Downstream), USB 3.0 (Downstream for USB-C), USB-C x1 (Upstream) |
| Output Terminals | |
| Digital | N/A |
| Analog | N/A |
| Audio | 3.5mm Mini Jack, Optical Audio Out (SPDIF) |
| External Control | N/A |
| Power Consumption | |
| On (Typ/Max Brightness/All Max) | 120W / 150W / 220W |
| Network Standby | 2W |
| Normal Standby | <0.5W |
| Current Rating | 2.6 - 1.1A @ 100V - 240V |
| Speaker Rating | Integrated 10W x 10W |
| Physical Specifications | |
| Bezel Width (L/R, T/B) | 9.9mm / 9.9mm / 9.9mm / 9.9mm |
| Net Dimensions (without Stand; W x H x D) | 1233.0 x 703.5 x 62.0mm |
| Net Weight | 13.2kg |
| VESA Hole Configuration | 4x M6 x 14mm (400 x 400) |
| Internal Player | |
| Operating System | Android 13 |
| Processor | ARM Cortex-A55 1.5GHz Quad Core CPU |
| Storage | 32GB ROM (Total Capacity of Storage including OS) |
| Memory | 4GB |
| Sensors | |
| Ambient Light Sensor | Integrated |
| Temperature Sensor | Integrated |
| NFC Sensor | N/A |
| Environmental Conditions | |
| Operating Temperature | 0° - 40° C |
| Operating Humidity | 20-80% |
| Operating Altitude | 5,000m (16,405ft) |
| Additional Specifications | |
| Limited Warranty | 3-Year RTB |
| Additional Features | AMX Support, Automated Email Alert Function, CEC Support through all HDMI Connections, ARC through HDMI1, Display Browser Control, Display Wall Calibrator Compatible, E-Share Trial License Included (FW R1.5.17 and newer), HDR Compatible (PQ, HLG, HDR10), Updated OSD Design, Android Operating System/Media Player , NaViSet Administrator 2 Compatible, Screen Rotation for Portrait (Home only), Powered USB Ports, Real Time Clock, Full Scheduler, Quick Start, TileMatrix (5x5), Crestron Connected V2, SNMP, Integrated Temperature sensor, Full Input Detect Functionality (First, Last, Custom), Integrated Ambient Light Sensor, Programmable Gamma, Color Temperature Adjustment (2600K - 10000K), Energy Star 8.0, Vacation Switch |
| Ships With | 3m AC Power Cord, 2.0m HDMI Cable, IR Remote Control, Batteries, AAA batteries |
Specifications
| LCD Module | |
| Panel Technology | LCD |
| Viewable Image Size | 1428.48 x 803.52mm |
| Native Resolution | 3840 x 2160 |
| Brightness (Typical) | 450 cd/m2 |
| Contrast Ratio (Typical) | 1200:1 |
| Viewing Angle | 178° Vert., 178° Hor. (89U/89D/89L/89R) @ CR>10 |
| Aspect Ratio | 16:9 |
| Colour Gamut | 68% NTSC |
| Displayable Colours | Over 1.07 Billion (8 bit + FRC) |
| Orientation | Landscape and Portrait (CW Rotation) |
| Panel Haze (%) | 25 (Anti-Reflective) |
| Runtime | 18/7 |
| Connectivity Input Terminals | |
| Digital | HDMI 2.0 x3, USB-C x1 (DP-Alt Mode Supported) |
| Analog | N/A |
| Audio | N/A |
| External Control | LAN (1000Mbit), 3.5mm Mini Jack IR Remote, RS-232C |
| Data | USB 3.0 x1 (5V/0.9A, Downstream), USB 2.0 x1 (5V/0.5A, Downstream), USB 3.0 (Downstream for USB-C), USB-C x1 (Upstream) |
| Output Terminals | |
| Digital | N/A |
| Analog | N/A |
| Audio | 3.5mm Mini Jack, Optical Audio Out (SPDIF) |
| External Control | N/A |
| Power Consumption | |
| On (Typ/Max Brightness/All Max) | 140W / 175W / 240W |
| Network Standby | 2W |
| Normal Standby | <0.5W |
| Current Rating | 3.1 - 1.3A @ 100V - 240V |
| Speaker Rating | Integrated 10W x 10W |
| Physical Specifications | |
| Bezel Width (L/R, T/B) | 15.9mm / 15.9mm / 15.9mm / 15.9mm |
| Net Dimensions (without Stand; W x H x D) | 1463.3 x 838.3 x 68.0mm |
| Net Weight | 23.9kg |
| VESA Hole Configuration | 4x M8 x 14mm (400 x 400) |
| Internal Player | |
| Operating System | Android 13 |
| Processor | ARM Cortex-A55 1.5GHz Quad Core CPU |
| Storage | 32GB ROM (Total Capacity of Storage including OS) |
| Memory | 4GB |
| Sensors | |
| Ambient Light Sensor | Integrated |
| Temperature Sensor | Integrated |
| NFC Sensor | N/A |
| Environmental Conditions | |
| Operating Temperature | 0° - 40° C |
| Operating Humidity | 20-80% |
| Operating Altitude | 5,000m (16,405ft) |
| Additional Specifications | |
| Limited Warranty | 3-Year RTB |
| Additional Features | AMX Support, Automated Email Alert Function, CEC Support through all HDMI Connections, ARC through HDMI1, Display Browser Control, Display Wall Calibrator Compatible, E-Share Trial License Included (FW R1.5.17 and newer), HDR Compatible (PQ, HLG, HDR10), Updated OSD Design, Android Operating System/Media Player , NaViSet Administrator 2 Compatible, Screen Rotation for Portrait (Home only), Powered USB Ports, Real Time Clock, Full Scheduler, Quick Start, TileMatrix (5x5), Crestron Connected V2, SNMP, Integrated Temperature sensor, Full Input Detect Functionality (First, Last, Custom), Integrated Ambient Light Sensor, Programmable Gamma, Color Temperature Adjustment (2600K - 10000K), Energy Star 8.0, Vacation Switch |
| Ships With | 3m AC Power Cord, 2.0m HDMI Cable, IR Remote Control, Batteries, AAA batteries |
Specifications
| LCD Module | |
| Panel Technology | LCD |
| Viewable Image Size | 1649.66 x 927.94mm |
| Native Resolution | 3840 x 2160 |
| Brightness (Typical) | 450 cd/m2 |
| Contrast Ratio (Typical) | 1200:1 |
| Viewing Angle | 178° Vert., 178° Hor. (89U/89D/89L/89R) @ CR>10 |
| Aspect Ratio | 16:9 |
| Colour Gamut | 72% NTSC |
| Displayable Colours | Over 1.07 Billion (8 bit + FRC) |
| Orientation | Landscape and Portrait (CW Rotation) |
| Panel Haze (%) | 25 (Anti-Reflective) |
| Runtime | 18/7 |
| Connectivity Input Terminals | |
| Digital | HDMI 2.0 x3, USB-C x1 (DP-Alt Mode Supported) |
| Analog | N/A |
| Audio | N/A |
| External Control | LAN (1000Mbit), 3.5mm Mini Jack IR Remote, RS-232C |
| Data | USB 3.0 x1 (5V/0.9A, Downstream), USB 2.0 x1 (5V/0.5A, Downstream), USB 3.0 (Downstream for USB-C), USB-C x1 (Upstream) |
| Output Terminals | |
| Digital | N/A |
| Analog | N/A |
| Audio | 3.5mm Mini Jack, Optical Audio Out (SPDIF) |
| External Control | N/A |
| Power Consumption | |
| On (Typ/Max Brightness/All Max) | 132W / 190W / 300W |
| Network Standby | 2W |
| Normal Standby | <0.5W |
| Current Rating | 3.1 - 1.4A @ 100V - 240V |
| Speaker Rating | Integrated 10W x 10W, Optional through SP-RM3a |
| Physical Specifications | |
| Bezel Width (L/R, T/B) | 15.9mm / 15.9mm / 15.9mm / 15.9mm |
| Net Dimensions (without Stand; W x H x D) | 1685.6 x 963.7 x 68.0mm |
| Net Weight | 34.3kg |
| VESA Hole Configuration | 4x M8 x 18mm (800 x 600) |
| Internal Player | |
| Operating System | Android 13 |
| Processor | ARM Cortex-A55 1.5GHz Quad Core CPU |
| Storage | 32GB ROM (Total Capacity of Storage including OS) |
| Memory | 4GB |
| Sensors | |
| Ambient Light Sensor | Integrated |
| Temperature Sensor | Integrated |
| NFC Sensor | N/A |
| Environmental Conditions | |
| Operating Temperature | 0° - 40° C |
| Operating Humidity | 20-80% |
| Operating Altitude | 5,000m (16,405ft) |
| Additional Specifications | |
| Limited Warranty | 3-Year RTB |
| Additional Features | AMX Support, Automated Email Alert Function, CEC Support through all HDMI Connections, ARC through HDMI1, Display Browser Control, Display Wall Calibrator Compatible, E-Share Trial License Included (FW R1.5.17 and newer), HDR Compatible (PQ, HLG, HDR10), Updated OSD Design, Android Operating System/Media Player , NaViSet Administrator 2 Compatible, Screen Rotation for Portrait (Home only), Powered USB Ports, Real Time Clock, Full Scheduler, Quick Start, TileMatrix (5x5), Crestron Connected V2, SNMP, Integrated Temperature sensor, Full Input Detect Functionality (First, Last, Custom), Integrated Ambient Light Sensor, Programmable Gamma, Color Temperature Adjustment (2600K - 10000K), Energy Star 8.0, Vacation Switch |
| Ships With | 3m AC Power Cord, 2.0m HDMI Cable, IR Remote Control, Batteries, AAA batteries |
Specifications
| LCD Module | |
| Panel Technology | LCD |
| Viewable Image Size | 1895.04 x 1065.96mm |
| Native Resolution | 3840 x 2160 |
| Brightness (Typical) | 450 cd/m2 |
| Contrast Ratio (Typical) | 1200:1 |
| Viewing Angle | 178° Vert., 178° Hor. (89U/89D/89L/89R) @ CR>10 |
| Aspect Ratio | 16:9 |
| Colour Gamut | 72% NTSC |
| Displayable Colours | Over 1.07 Billion (8 bit + FRC) |
| Orientation | Landscape and Portrait (CW Rotation) |
| Panel Haze (%) | 25 (Anti-Reflective) |
| Runtime | 18/7 |
| Connectivity Input Terminals | |
| Digital | HDMI 2.0 x3, USB-C x1 (DP-Alt Mode Supported) |
| Analog | N/A |
| Audio | N/A |
| External Control | LAN (1000Mbit), 3.5mm Mini Jack IR Remote, RS-232C |
| Data | USB 3.0 x1 (5V/0.9A, Downstream), USB 2.0 x1 (5V/0.5A, Downstream), USB 3.0 (Downstream for USB-C), USB-C x1 (Upstream) |
| Output Terminals | |
| Digital | N/A |
| Analog | N/A |
| Audio | 3.5mm Mini Jack, Optical Audio Out (SPDIF) |
| External Control | N/A |
| Power Consumption | |
| On (Typ/Max Brightness/All Max) | 162W / 295W / 405W |
| Network Standby | 2W |
| Normal Standby | <0.5W |
| Current Rating | 4.1 - 1.9A @ 100V - 240V |
| Speaker Rating | Integrated 10W x 10W, Optional through SP-RM3a |
| Physical Specifications | |
| Bezel Width (L/R, T/B) | 15.9mm / 15.9mm / 15.9mm / 15.9mm |
| Net Dimensions (without Stand; W x H x D) | 1930.8 x 1101.7 x 68.0mm |
| Net Weight | 42.0kg |
| VESA Hole Configuration | 4x M8 x 18mm (800 x 600) |
| Internal Player | |
| Operating System | Android 13 |
| Processor | ARM Cortex-A55 1.5GHz Quad Core CPU |
| Storage | 32GB ROM (Total Capacity of Storage including OS) |
| Memory | 4GB |
| Sensors | |
| Ambient Light Sensor | Integrated |
| Temperature Sensor | Integrated |
| NFC Sensor | N/A |
| Environmental Conditions | |
| Operating Temperature | 0° - 40° C |
| Operating Humidity | 20-80% |
| Operating Altitude | 5,000m (16,405ft) |
| Additional Specifications | |
| Limited Warranty | 3-Year RTB |
| Additional Features | AMX Support, Automated Email Alert Function, CEC Support through all HDMI Connections, ARC through HDMI1, Display Browser Control, Display Wall Calibrator Compatible, E-Share Trial License Included (FW R1.5.17 and newer), HDR Compatible (PQ, HLG, HDR10), Updated OSD Design, Android Operating System/Media Player , NaViSet Administrator 2 Compatible, Screen Rotation for Portrait (Home only), Powered USB Ports, Real Time Clock, Full Scheduler, Quick Start, TileMatrix (5x5), Crestron Connected V2, SNMP, Integrated Temperature sensor, Full Input Detect Functionality (First, Last, Custom), Integrated Ambient Light Sensor, Programmable Gamma, Color Temperature Adjustment (2600K - 10000K), Energy Star 8.0, Vacation Switch |
| Ships With | 3m AC Power Cord, 2.0m HDMI Cable, IR Remote Control, Batteries, AAA batteries |
Specifications
| LCD Module | |
| Panel Technology | LCD |
| Viewable Image Size | 2158.85 x 1214.35mm |
| Native Resolution | 3840 x 2160 |
| Brightness (Typical) | 450 cd/m2 |
| Contrast Ratio (Typical) | 1200:1 |
| Viewing Angle | 178° Vert., 178° Hor. (89U/89D/89L/89R) @ CR>10 |
| Aspect Ratio | 16:9 |
| Colour Gamut | 72% NTSC |
| Displayable Colours | Over 1.07 Billion (8 bit + FRC) |
| Orientation | Landscape and Portrait (CW Rotation) |
| Panel Haze (%) | 25 (Anti-Reflective) |
| Runtime | 18/7 |
| Connectivity Input Terminals | |
| Digital | HDMI 2.0 x3, USB-C x1 (DP-Alt Mode Supported) |
| Analog | N/A |
| Audio | N/A |
| External Control | LAN (1000Mbit), 3.5mm Mini Jack IR Remote, RS-232C |
| Data | USB 3.0 x1 (5V/0.9A, Downstream), USB 2.0 x1 (5V/0.5A, Downstream), USB 3.0 (Downstream for USB-C), USB-C x1 (Upstream) |
| Output Terminals | |
| Digital | N/A |
| Analog | N/A |
| Audio | 3.5mm Mini Jack, Optical Audio Out (SPDIF) |
| External Control | N/A |
| Power Consumption | |
| On (Typ/Max Brightness/All Max) | 206W / TBC / 444W |
| Network Standby | 2W |
| Normal Standby | <0.5W |
| Current Rating | 4.5 - 2.1A @ 100V - 240V |
| Speaker Rating | Integrated 10W x 10W, Optional through SP-RM3a |
| Physical Specifications | |
| Bezel Width (L/R, T/B) | 15.9mm / 15.9mm / 15.9mm / 15.9mm |
| Net Dimensions (without Stand; W x H x D) | 2198.9 x 1254.6 x 68.6mm |
| Net Weight | 54.5kg |
| VESA Hole Configuration | 4x M8 x 18mm (800 x 600) |
| Internal Player | |
| Operating System | Android 13 |
| Processor | ARM Cortex-A55 1.5GHz Quad Core CPU |
| Storage | 32GB ROM (Total Capacity of Storage including OS) |
| Memory | 4GB |
| Sensors | |
| Ambient Light Sensor | Integrated |
| Temperature Sensor | Integrated |
| NFC Sensor | N/A |
| Environmental Conditions | |
| Operating Temperature | 0° - 40° C |
| Operating Humidity | 20-80% |
| Operating Altitude | 5,000m (16,405ft) |
| Additional Specifications | |
| Limited Warranty | 3-Year RTB |
| Additional Features | AMX Support, Automated Email Alert Function, CEC Support through all HDMI Connections, ARC through HDMI1, Display Browser Control, Display Wall Calibrator Compatible, E-Share Trial License Included (FW R1.5.17 and newer), HDR Compatible (PQ, HLG, HDR10), Updated OSD Design, Android Operating System/Media Player , NaViSet Administrator 2 Compatible, Screen Rotation for Portrait (Home only), Powered USB Ports, Real Time Clock, Full Scheduler, Quick Start, TileMatrix (5x5), Crestron Connected V2, SNMP, Integrated Temperature sensor, Full Input Detect Functionality (First, Last, Custom), Integrated Ambient Light Sensor, Programmable Gamma, Color Temperature Adjustment (2600K - 10000K), Energy Star 8.0, Vacation Switch |
| Ships With | 3m AC Power Cord, 2.0m HDMI Cable, IR Remote Control, Batteries, AAA batteries |
Expand All
General
Display Types
Commercial Display Panels
Size
Other
Landscape
-
Portrait
-
Lie Flat
-
System on chip
-
24 / 7 Operation
-
High Brightness (500+ cd/m2)
-
Stands
-
I/O Boards
-
Wall Mount
-
Other
-
Brightness
-
Resolution
-
Accessories
Main accessories
-
Computer Input
Plug & Play
-
Power Management
-
Synchronisation
-
Video
-
Enviornmental
Operating Humidity
-
Operating Temperature
-
Input Terminal
Audio (3.5mm stereo mini jack)
-
Component BNC
-
Component Video
-
Display Port
-
DVI-D
-
DVI-I
-
HDMI
-
PC Analogue mini D-sub 15 pin
-
RCA pin (L/R)
-
RS-232C
-
USB
-
Video BNC
-
With Options
-
LCD Panel
Active Screen Area
-
Backlight
-
Contrast Ratio
-
Max. Brightness (average)
-
Max. Display Colours
-
Max.Resolution
-
Pixel Pitch (H x V)
-
Response Time
-
Screen
-
Viewing Angle (H/V)
-
Output Terminal
3.5mm mini stereo jack
-
DisplayPort
-
Micro-USB
-
RCA pin(L/R)
-
Speakers
Built-in
-
External
-
Touch Pen
Button
-
Communication
-
Touchscreen
Driver
-
Multi Touch
-
PC Connection Port
-
Power Supply
-
Protection Glass Thickness
-
Touch Technology
-
Video Colour System
Standard
-
Others
Dimensions (W x D x H) (approx, display only)
-
Mounting
-
Power Consumption
-
Weight
-
Business Products Warranty Statement
This Sharp product is warranted against faults in material and manufacture for the period as stated in the table below.
In the event of any defect arising in the equipment during the warranty period, such repairs should only be carried out by the Dealer from which the unit was originally purchased or a Service Centre approved by Sharp to service this type of equipment These repairs would be carried out at no charge to the owner, subject to the conditions specified herein.
This warranty does not extend to defects or injuries caused by or resulting from causes not attributable to faulty parts or the manufacture of the product, including but not limited to, defect or injury caused by or resulting from misuse, abuse, neglect, lack of maintenance, accidental damage, improper voltage, liquid spillage, vermin infestation, software, or any alterations made to the product which are not authorised by Sharp.
Please retain your sales documentation, as this should be produced to validate a warranty claim. This warranty is in addition to and in no way limits, varies or excludes any implied rights and remedies under any relevant legislation in the country of sale.
This warranty does not cover transportation to and from the Sharp Approved Service Centre. Goods presented for repair may be replaced by refurbished goods of the same type rather than being repaired. Refurbished parts may be used to repair the goods. The repair of your goods may result in the loss of user generated data, please ensure that you have saved this data elsewhere prior to repair.
Warranty Period
- Data Projector 24 months (excluding lamps and air filters)
- Copier / Printer 6 months
- Electronic Cash Registers 12 months
- Facsimile 12 months
- Information Display Panel 36 months
- POS Terminals 12 months
- AL Copier 12 months
- Calculator 12 months
- Personal Organiser 12 months
Important Notice: This warranty applies to products sold in New Zealand.
Related Products
Found what you're looking for?
Search our website for products, FAQs, software and drivers here...
