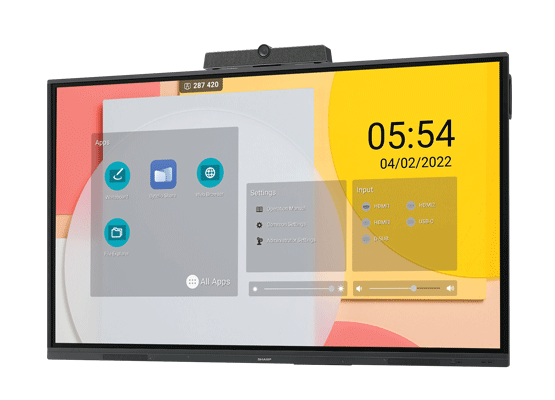

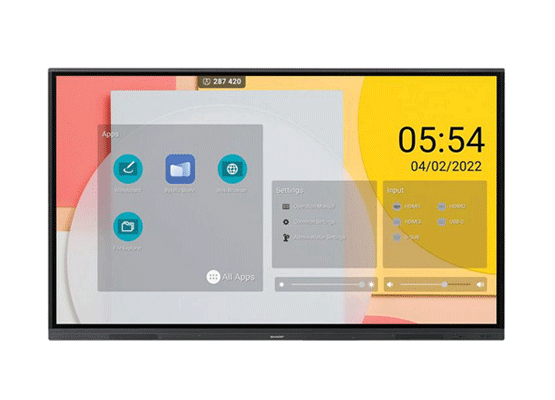

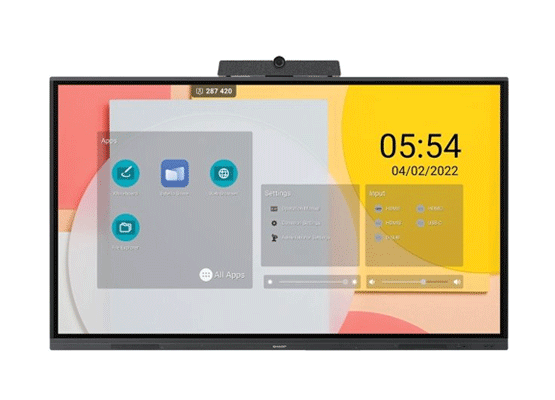

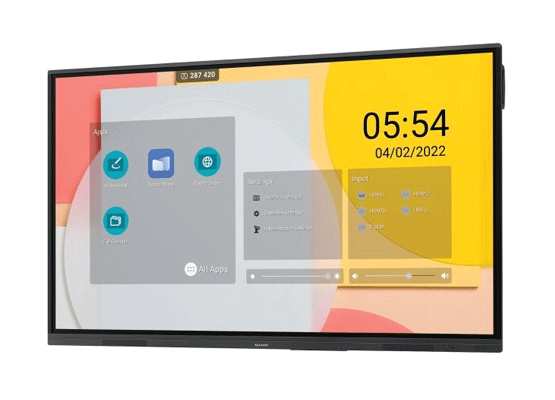

PN-L2B Series Interactive Displays
Interactive displays, available in sizes in sizes from 65" to 86".
The Sharp PN-L2B Series offers a powerful, flexible platform for modern collaboration.
With premium 4K visuals, natural writing response, and built-in smart functionality, it transforms the way teams connect, communicate, and co-create—whether they’re in the same room or across the globe.
Price on Application.
Sharp PN-L2B Series Interactive Displays
Intuitive Collaboration. Powerful Integration.
Unlock the full potential of teamwork with the Sharp PN-L2B Series—a premium range of interactive 4K UHD displays built for seamless collaboration in classrooms, meeting rooms, and hybrid workspaces. Available in 65", 75", and 86" sizes, these advanced AQUOS BOARD® displays combine ultra-precise touch technology with flexible connectivity and robust expandability to support a smarter, more interactive experience—whether in-person or remote.
From whiteboarding to video conferencing, the PN-L2B Series makes collaboration effortless.
Technical Highlights
- Brightness: 400 cd/m²
- Contrast Ratio: Up to 1200:1
- Viewing Angle: 178°
- Built-in Speakers: 2 x 10W
- Orientation: Landscape
- Runtime: 16 hours/day, 7 days/week
- Warranty: 3-years
Sizes Available
PN-L652B – 65"
PN-L752B – 75"
PN-L862B – 86"
Ideal for:

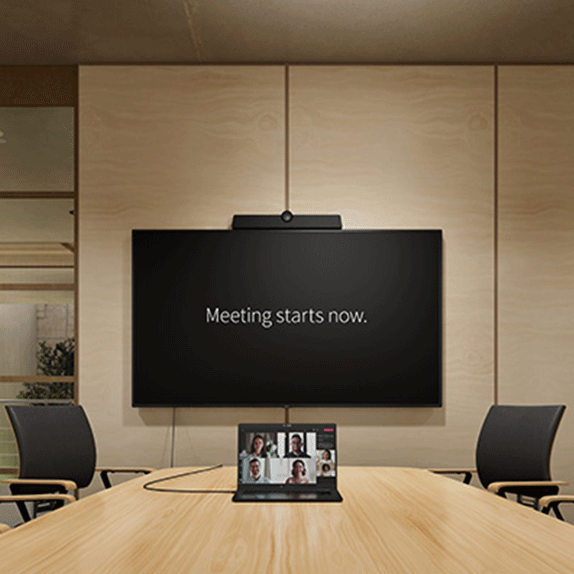

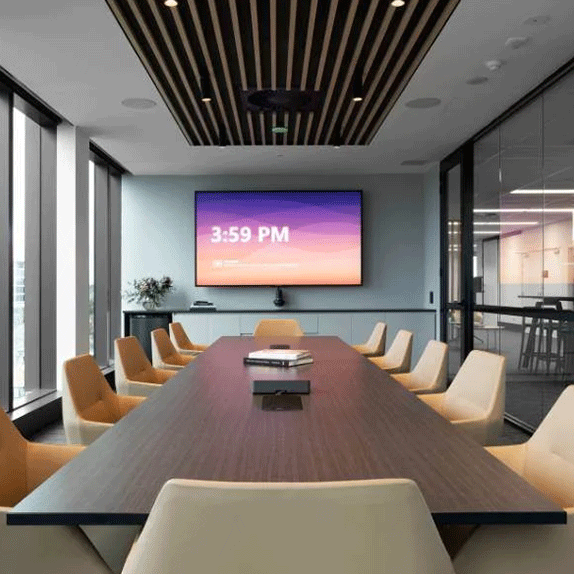

Corporate & Hybrid Workspaces
Enable effective collaboration across remote and in-person teams with video conferencing and interactive content sharing.
Education & Training
Create engaging, interactive lessons with whiteboarding, annotation, and multi-user input that brings ideas to life.
Public Sector & Government
Upgrade meeting spaces with secure, easy-to-use displays that support dynamic presentations and structured collaboration.
Creative & Technical Teams
Ideate, annotate, and iterate in real time with high precision touch and Windows Ink compatibility.
Key Features
- 4K Ultra HD Clarity: Show every detail with stunning 3840 x 2160 resolution. The PN-L2B Series delivers vibrant, sharp visuals that elevate presentations, digital lessons, and brainstorming sessions.
- Responsive 20-Point Touchscreen: Write, draw, and interact naturally with up to 20 simultaneous touchpoints. Designed for accuracy and fluidity, the PN-L2B responds to both finger and stylus input with minimal latency—making it feel like pen on paper.
- Built-In Android System: Get started fast with the embedded Android platform, offering instant access to whiteboarding, file sharing, and integrated apps—no external PC required.

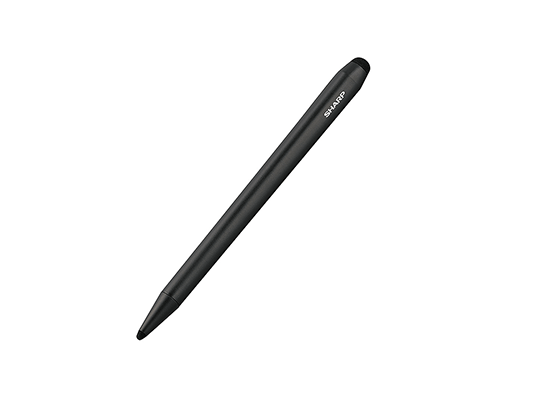

- Windows Ink & Pen Support: Pair the display with a connected Windows 10/11 device to take full advantage of Windows Ink functionality. Enjoy smooth, pressure-sensitive input ideal for creative, technical, or annotation-heavy work.
- OPS Slot & USB-C Connectivity: Stay flexible with options to expand. The PN-L2B Series supports OPS slot-in PCs and features USB-C for single-cable connectivity—streamlining power, data, audio, and video through one port.
- Integrated AV & Remote Collaboration Tools: 2 x 10W speakers and compatibility with leading video conferencing platforms, the PN-L2B Series is ready for hybrid collaboration. Add an optional AV soundbar or camera for an all-in-one solution.
Specifications
| LCD Panel | |
| Installation | Landscape or Portrait with Face-up supported at 0–20° tilt |
| LCD Component | 65" Class (64.5" diagonal) TFT LCD, IPS panel |
| Bezel Width | 16 mm (all sides) |
| Max. Resolution | 3840 x 2160 |
| Max. Colours | Approx. 1.07 billion colours |
| Max. Brightness | 500 cd/m² |
| Aspect Ratio | 16:9 |
| Contrast Ratio | 1,500:1 |
| Pixel Pitch | 0.372 × 0.372 mm |
| Viewing Angle | 178° horizontal / 178° vertical |
| Active Screen Area | 1,428.48 × 803.52 mm |
| Backlight | Direct LED |
| Operating Hours | 18 hours per day, 7 days per week |
| Operating System & Software | |
| Operating System | Android 14 |
| Google Certification | Google ELDA certified |
| Processor | Octa-core ARM processor: 4 × Cortex-A73 (2.3 GHz) + 4 × Cortex-A53 (2.0 GHz) |
| Wireless Screen Sharing | eShare |
| System Memory | 8GB RAM |
| Internal Storage | 64GB |
| Whiteboard | Built-in whiteboard application |
| Annotation | Pen software / annotation overlay |
| Additional Applications | Web browser, PDF viewer, screen recorder, timer and voting |
| Google services | Google Play Store and Google Workspace compatibility |
| BYOM | Supported via USB-C |
| USB-C functionality | Video, data, touch and power delivery |
| Connectivity & Output | |
| Computer Input Signal | Analog RGB (0.7 Vp-p) [75 Ohm] |
| Sync Signal | Horizontal/vertical separate (TTL: positive/negative) |
| Plug & Play | VESA DDC2B |
| USB Port | USB 3.2 compliant x 2, USB 2.0 compliant x 2, USB-C 3.2 Gen 1 x 1 |
| LAN Terminal | 10 BASE-T/100 BASE-TX/1000 BASE-T |
| Wireless LAN | IEEE802.11ac/n/a/g/b compliant |
| Bluetooth | 5.0 compliant. Supported protocols: A2DP, AVRCP, GATT, HID |
| Expansion Slot | 18 V, 3.6 A |
| Audio | |
| Built-in speakers | 2 × 15W |
| Total audio output | 30W |
| Audio output connection | 3.5 mm stereo mini jack |
| HDMI audio | Supported |
| Touch Panel | |
| Touch Technology | Infrared (IR) |
| Multi Touch | Up to 40 simultaneous touch points |
| Touch Input | Finger, gloved hand and passive stylus |
| Touch Accuracy | ±1 mm |
| Glass finish | Anti-glare |
| Palm Rejection | Supported |
| Windows Ink | Supported |
| Protective Glass | Approx. 3.2 mm tempered glass, Shock resistance tested to approximately 130 cm |
| Power and Environmental Specifications | |
| Power Requirement | 100–240V AC, 50/60Hz |
| Operating Temperature | 5°C to 35° |
| Operating Humidity | 20-80% (no condensation) |
| Power Consumption (networked standby mode / eco standby mode / off mode) | 140W (2W / 0.5W / 0.0W) |
| Physical Dimensions and Weight | |
| Dimensions (W x H x D) | 1,487 x 862 x 87mm |
| Weight | 35kg |
| Packaging Weight | Approx. 45kg |
| Main Accessories | Remote control unit, Cable clamp, Power cord, Remote control unit battery, Setup Manual, Touch pen x 2, Camera mount, Camera mount screw (M3 x 10), Camera screws, STB mount, STB mount screw (M3 x 5), Wireless adapter, USB cable |
| Options | AV Soundbar PNZCMS1 |
Specifications
| LCD Panel | |
| Installation | Landscape |
| LCD Component | 75" Class (74.5" diagonal) TFT LCD |
| Bezel Width | 16 mm (all sides) |
| Max. Resolution | 3840 x 2160 |
| Max. Colours | Approx. 1.07 billion colours |
| Max. Brightness | 500 cd/m² |
| Aspect Ratio | 16:9 |
| Contrast Ratio | 1,500:1 |
| Pixel Pitch | 0.430 × 0.430 mm |
| Viewing Angle | 178° horizontal / 178° vertical |
| Active Screen Area | 1,650.2 x 928.3 mm |
| Backlight | Direct LED |
| Operating Hours | 18 hours per day, 7 days per week |
| Operating System & Software | |
| Operating System | Android 14 |
| Google Certification | Google ELDA certified |
| Processor | ARM Cortex-A73 quad-core, 2.3 GHz |
| Wireless Screen Sharing | eShare |
| Whiteboard | Built-in whiteboard application |
| Annotation | Pen software |
| Additional Applications | Web browser, PDF viewer, screen recorder, timer and voting |
| Google services | Google Play Store and Google Workspace compatibility |
| BYOM | Supported via USB-C |
| USB-C functionality | Video, data, touch and power delivery |
| Connectivity & Output | |
| Computer Input Signal | Analog RGB (0.7 Vp-p) [75 Ohm] |
| Sync Signal | Horizontal/vertical separate (TTL: positive/negative) |
| Plug & Play | VESA DDC2B |
| USB Port | USB 3.2 compliant x 2, USB 2.0 compliant x 2, USB-C 3.2 Gen 1 x 1 |
| LAN Terminal | 10 BASE-T/100 BASE-TX/1000 BASE-T |
| Wireless LAN | IEEE802.11ac/n/a/g/b compliant |
| Bluetooth | 5.0 compliant. Supported protocols: A2DP, AVRCP, GATT, HID |
| Expansion Slot | 18 V, 3.6 A |
| Audio | |
| Built-in speakers | 2 × 15W |
| Total audio output | 30W |
| Audio output connection | 3.5 mm stereo mini jack |
| HDMI audio | Supported |
| Touch Panel | |
| Detection Method | PrecisionTouch Technology |
| Computer Connector | USB (3.0 compliant) (Type B) x 2 |
| Multi Touch | Up to 40 simultaneous touch points |
| Touch Input | Finger, gloved hand and passive stylus |
| Touch Accuracy | ±1 mm |
| Glass finish | Anti-glare |
| Palm Rejection | Supported |
| Windows Ink | Supported |
| Protective Glass | Approx. 3.2 mm tempered glass, Shock resistance tested to approximately 130 cm |
| Power and Environmental Specifications | |
| Power Requirement | 100–240V AC, 50/60Hz |
| Operating Temperature | 5°C to 35° |
| Operating Humidity | 20-80% (no condensation) |
| Power Consumption (networked standby mode / eco standby mode / off mode) | 170W (2W / 0.5W / 0.0W) |
| Physical Dimensions and Weight | |
| Dimensions (W x H x D) | 1,708 x 862 x 87mm |
| Weight | 48kg |
| Packaging Weight | Approx. 59kg |
| Main Accessories | Remote control unit, Cable clamp, Power cord, Remote control unit battery, Setup Manual, Touch pen x 2, Camera mount, Camera mount screw (M3 x 10), Camera screws, STB mount, STB mount screw (M3 x 5), Wireless adapter, USB cable |
| Options | AV Soundbar PNZCMS1 |
Specifications
| LCD Panel | |
| Installation | Landscape only |
| LCD Component | 86" Class (85.6" diagonal) TFT LCD |
| Bezel Width | 16 mm (all sides) |
| Max. Resolution | 3840 x 2160 |
| Max. Colours | Approx. 1.07 billion colours |
| Max. Brightness | 500 cd/m² |
| Aspect Ratio | 16:9 |
| Contrast Ratio | 1,500:1 |
| Pixel Pitch | 0.430 × 0.430 mm |
| Viewing Angle | 178° horizontal / 178° vertical |
| Active Screen Area | 1,895.04 × 1,065.96 mm |
| Backlight | Direct LED |
| Operating Hours | 18 hours per day, 7 days per week |
| Operating System & Software | |
| Operating System | Android 14 |
| Google Certification | Google ELDA certified |
| Processor | ARM Cortex-A73 quad-core, 2.3 GHz, with ARM Cortex-A53 quad-core, 2.0 GHz |
| Wireless Screen Sharing | eShare |
| System Memory | 8GB RAM |
| Internal Storage | 64GB |
| Whiteboard | Built-in whiteboard application |
| Annotation | Pen software / annotation overlay |
| Additional Applications | Web browser, PDF viewer, screen recorder, timer and voting |
| Google services | Google Play Store and Google Workspace compatibility |
| BYOM | Supported via USB-C |
| USB-C functionality | Video, data, touch and power delivery |
| Connectivity & Output | |
| Computer Input Signal | Analog RGB (0.7 Vp-p) [75 Ohm] |
| Sync Signal | Horizontal/vertical separate (TTL: positive/negative) |
| Plug & Play | VESA DDC2B |
| USB Port | USB 3.2 compliant x 2, USB 2.0 compliant x 2, USB-C 3.2 Gen 1 x 1 |
| LAN Terminal | 10 BASE-T/100 BASE-TX/1000 BASE-T |
| Wireless LAN | IEEE802.11ac/n/a/g/b compliant |
| Bluetooth | 5.0 compliant. Supported protocols: A2DP, AVRCP, GATT, HID |
| Expansion Slot | 18 V, 3.6 A |
| Audio | |
| Built-in speakers | 2 × 15W |
| Total audio output | 30W |
| Audio output connection | 3.5 mm stereo mini jack |
| HDMI audio | Supported |
| Touch Panel | |
| Touch Technology | Infrared (IR) |
| Multi Touch | Up to 40 simultaneous touch points |
| Touch Input | Finger, gloved hand and passive stylus |
| Touch Accuracy | ±1 mm |
| Glass finish | Anti-glare |
| Palm Rejection | Supported |
| Windows Ink | Supported |
| Protective Glass | Approx. 3.2 mm tempered glass, Shock resistance tested to approximately 130 cm |
| Power and Environmental Specifications | |
| Power Requirement | 100–240V AC, 50/60Hz |
| Operating Temperature | 5°C to 35° |
| Operating Humidity | 20-80% (no condensation) |
| Power Consumption (networked standby mode / eco standby mode / off mode) | 245W (2W / 0.5W / 0.0W) |
| Physical Dimensions and Weight | |
| Dimensions (W x H x D) | 1,954 x 1,125 x 87mm |
| Weight | 60kg |
| Packaging Weight | Approx. 73kg |
| Main Accessories | Remote control unit, Cable clamp, Power cord, Remote control unit battery, Setup Manual, Touch pen x 2, Camera mount, Camera mount screw (M3 x 10), Camera screws, STB mount, STB mount screw (M3 x 5), Wireless adapter, USB cable |
| Options | AV Soundbar PNZCMS1 |
