UN552VS Series Video Wall Display
Price on Application.

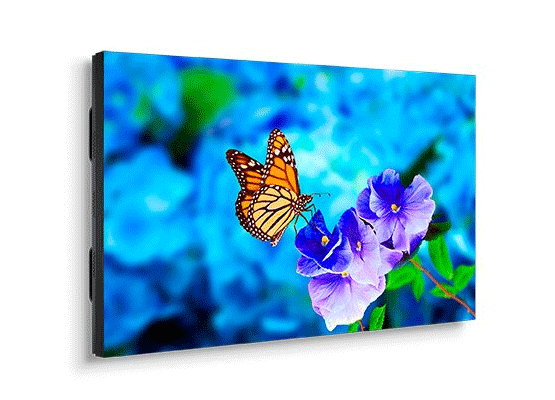

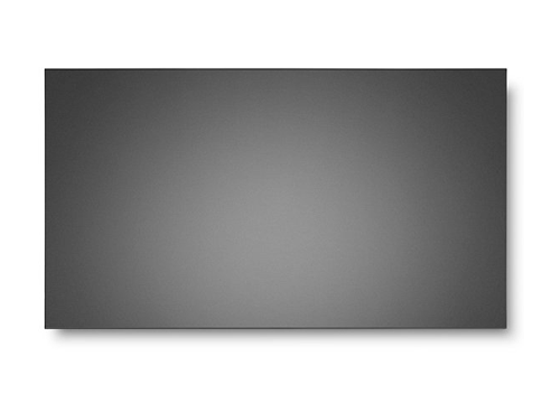

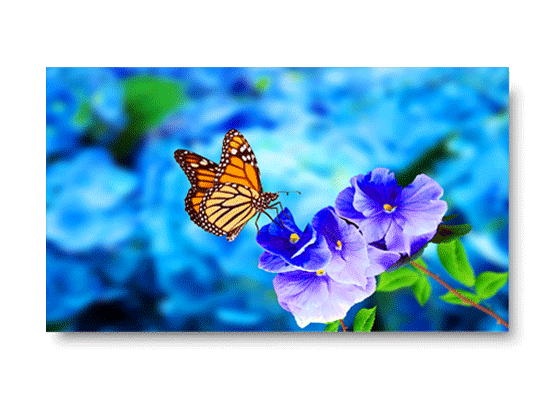

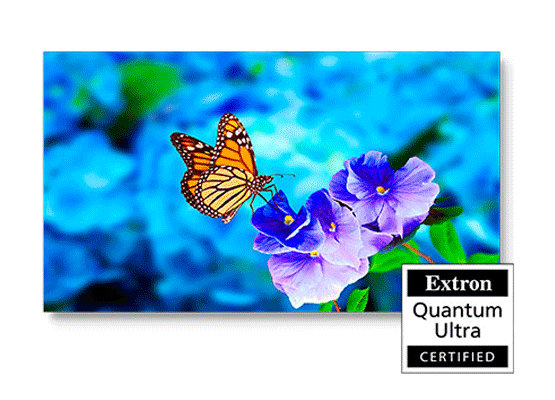

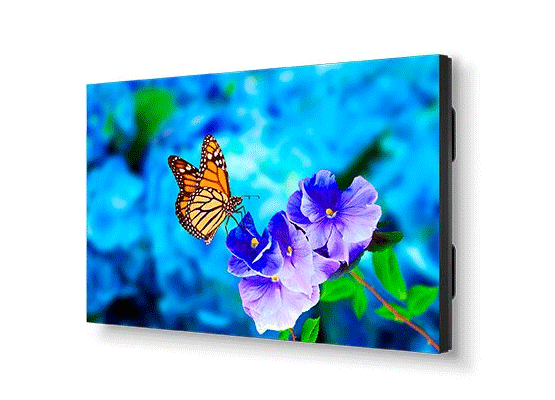

NEC MultiSync UN552VS Ultra-Narrow-Bezel Video Wall Display
Spectacular Video Walls for Demanding Environments.
Elevate large-scale visual storytelling with the NEC MultiSync UN552VS—a premium 55" video wall display engineered for precision, consistency, and seamless 24/7 performance. Featuring ultra-thin bezels, industry-leading color control, and advanced daisy-chaining, this display ensures that your content commands attention—whether in retail, corporate spaces, control rooms, or digital signage.
Technical Highlights
- Bezel: Ultra Narrow 0.44mm
- Brightness: Up to 500 cd/m²
- Contrast Ratio: Up to 1200:1
- Viewing Angle: 178°
- Orientation: Landscape & Portrait
- Runtime: 24 hours/day, 7 days/week
- Warranty: 3-year warranty
Key Features
- Ultra-Thin 0.44 mm Bezel (<1 mm gap between panels): Ensures near-seamless visual continuity across video walls with minimal disruption between screens.
- SpectraView Engine with Factory Calibration: Delivers extraordinary color accuracy with built-in white point, gamma, brightness, uniformity, RGB calibration, white copy, and external sensor support.
- S-IPS Panel with Direct LED Backlighting: Offers wide viewing angles, a bright 500 cd/m² output, and reliable contrast for sharp, vivid imagery.
- UHD Daisy-Chain via DisplayPort & HDMI Out: Simplifies video wall setup by supporting multiple displays chained together with UHD content distribution.
- Advanced Thermal Management for 24/7 Use: Integrated temperature sensors and auto-activated fans maintain performance and reliability under continuous operation.
- Auto TileMatrix & TileCut for Simplified Setup: Automates layout configuration and precise content alignment across multiple displays to craft a flawless video wall.
- Uniformity Calibration for Professional Consistency: Calibration of gamma, intensity, and RGB ensures visual harmony from screen to screen.
Ideal For:

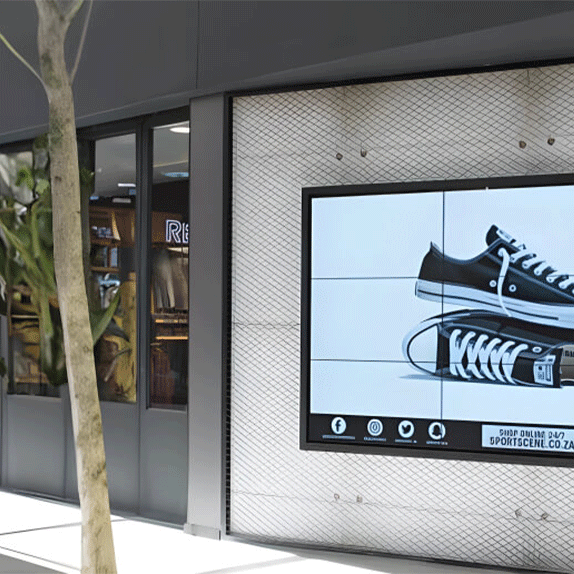

Retail & Malls
Create mesmerising large-format signage that cuts through the noise. Capture attention with vibrant, consistent colours that showcase products and promotions at their very best.
Command & Control
Depend on reliable, high-contrast visuals when every detail matters. The UN551VS ensures critical information is displayed with precision for quick, confident decision-making.
Broadcast & Studios
Seamlessly display dynamic content for immersive viewer engagement. Its ultra-narrow bezel design keeps the focus on the content, delivering a truly uninterrupted visual experience.

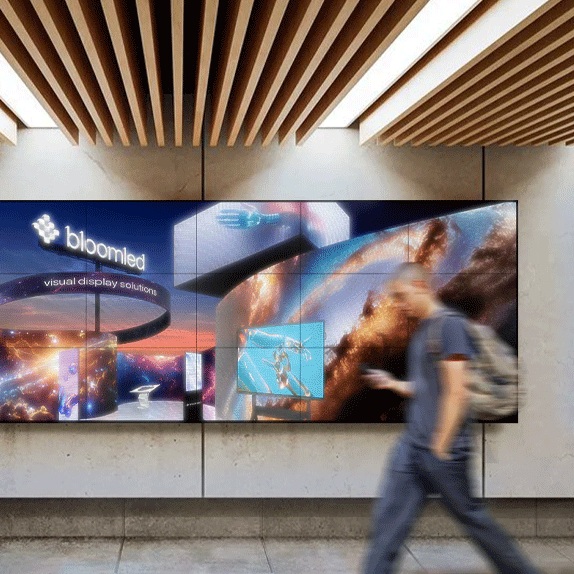

Corporate Lobbies & Public Hubs
Elevate communication with premium video installations. Impress visitors and engage audiences with striking, professional-quality visuals that enhance brand presence.
Specifications
| LCD Module | |
| Panel Technology | S-IPS) |
| Viewable Image Size | 55" |
| Backlight Type | LED Direct-lit |
| Native Resolution | 1920 x 1080 |
| Brightness (Maximum) | 500 cd/m2 |
| Contrast Ratio (Typical) | 1100:1 (without local dimming) |
| Viewing Angle | 178° Vert., 178° Hor. (89U/89D/89L/89R) @ CR>10 |
| Aspect Ratio | 16:9 |
| Pixel Pitch | 0.63 mm |
| Displayable Colours | Over 1.07 Billion (8 bit + FRC) |

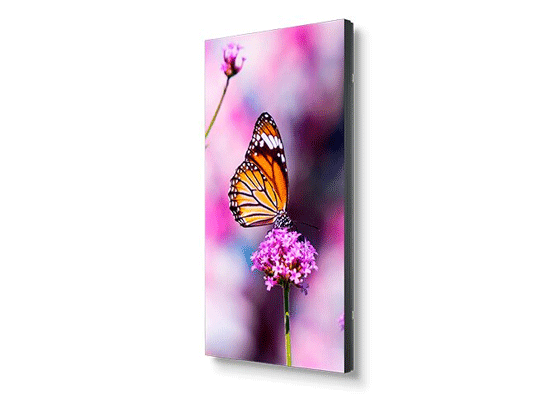

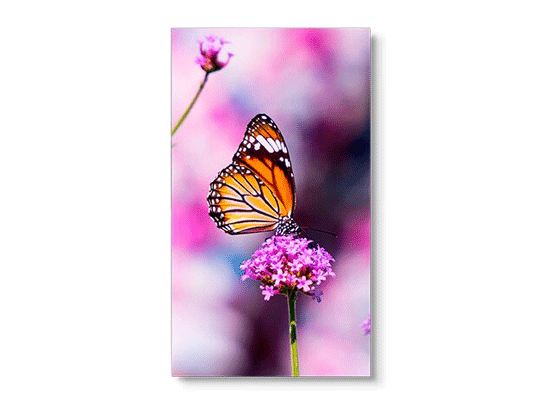

| Orientation | Landscape and Portrait |
| Runtime | 24/7 |
| Response Time (Gray to Gray) | 8 ms |
| Refresh Rate | 60Hz |
| Connectivity Input Terminals | |
| Digital | DisplayPort, HDMI, DVI-D |
| Analog | VGA 15-pin D-sub |
| Audio | Audio Mini-Jack, DisplayPort Audio, HDMI Audio |
| External Control | RS-232C, LAN, DDC/CI |
| Connectivity Output Terminals | |
| Digital | DisplayPort (DisplayPort, HDMI, DVI-D or Option Signals out of this port) |
| Audio | Audio Mini-Jack, External Speaker Jack (2), HDMI Audio (through DP Out), DisplayPort Audio |
| External Control | LAN |
| Power Consumption | |
| On | 165W |
| Power Consumption (max) | 255W (Brightness Max), 420W (All Functions Maxed) |
| ECO Mode Standby | <0.5W |
| Input Current | 4.7A @ 100V, 1.9A @ 240V |
| Physical Specifications | |
| Bezel Width (L/R, T/B) | 0.44mm / 0.44mm / 0.44mm / 0.44mm |
| Net Dimensions (without Stand; W x H x D) | 1210.5 x 681.2 x 98.6 mm |
| Net Weight (without Stand) | 25.8kg |
| VESA Hole Configuration | 400 x 400mm (4-hole, M6) |
| Signal Compatibility / Connectivity | |
| PC Signal Compatibility | Yes |
| Macintosh Signal Compatibility | Yes |
| Video | Analog RGB 0.7 Vp-p/75 Ohms (Analog), TMDS (Digital) |
| Sync | Separate sync: TTL Level (Positive/Negative) Composite sync: TTL Level (Positive/Negative) Composite sync on green: (0.3Vp-p negative 0.7Vp-p positive) |
| Environmental Conditions | |
| Operating Temperature | 5° - 40° C |
| Operating Humidity | 20-80% |
| Operating Altitude | 4200m (13,780ft) |
| Additional Specifications | |
| Warranty | 3-Years |
| Additional Features | Advanced thermal capabilities, Ethernet control and communication, RS-232 control and communication, landscape/portrait capable, carbon footprint meter, SpectraView Engine capabilities, scheduler with real-time clock and holiday mode, self-calibration to external color sensor, white copy function, screen saver function, 4K UHD daisy chain capabilities, optional human sensor, intelligent wireless data (Near Field Communications), Raspberry Pi compute module slot, expanded daisy chain (DP 1.2/HDMI 2.0), 6-axis color adjustment, metal rear cabinet, handles, variable picture modes, advanced video settings including noise reduction and adaptive contrast, input labeling, backlight adjust, frame comp capabilities, internal media player via microSD or USB, HDR emulation, aspect ratio control, LED direct-lit backlighting, OPS/expansion slot. |
| Ships With | 3.0m Power cord, 2.0m DisplayPort cable, 2.0m HDMI cable, LAN cable
|
Expand All
Business Products Warranty Statement
This Sharp product is warranted against faults in material and manufacture for the period as stated in the table below.
In the event of any defect arising in the equipment during the warranty period, such repairs should only be carried out by the Dealer from which the unit was originally purchased or a Service Centre approved by Sharp to service this type of equipment These repairs would be carried out at no charge to the owner, subject to the conditions specified herein.
This warranty does not extend to defects or injuries caused by or resulting from causes not attributable to faulty parts or the manufacture of the product, including but not limited to, defect or injury caused by or resulting from misuse, abuse, neglect, lack of maintenance, accidental damage, improper voltage, liquid spillage, vermin infestation, software, or any alterations made to the product which are not authorised by Sharp.
Please retain your sales documentation, as this should be produced to validate a warranty claim. This warranty is in addition to and in no way limits, varies or excludes any implied rights and remedies under any relevant legislation in the country of sale.
This warranty does not cover transportation to and from the Sharp Approved Service Centre. Goods presented for repair may be replaced by refurbished goods of the same type rather than being repaired. Refurbished parts may be used to repair the goods. The repair of your goods may result in the loss of user generated data, please ensure that you have saved this data elsewhere prior to repair.
Warranty Period
- Data Projector 24 months (excluding lamps and air filters)
- Copier / Printer 6 months
- Electronic Cash Registers 12 months
- Facsimile 12 months
- Information Display Panel 36 months
- POS Terminals 12 months
- AL Copier 12 months
- Calculator 12 months
- Personal Organiser 12 months
Important Notice: This warranty applies to products sold in New Zealand.
