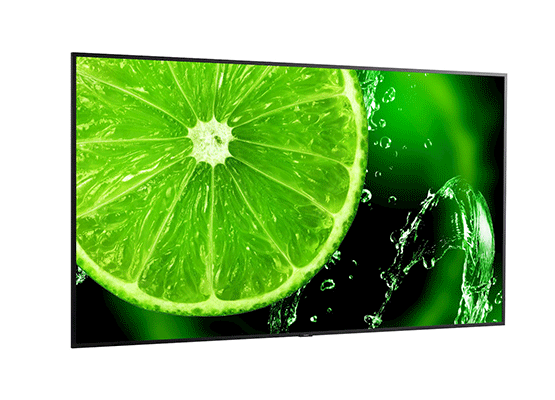

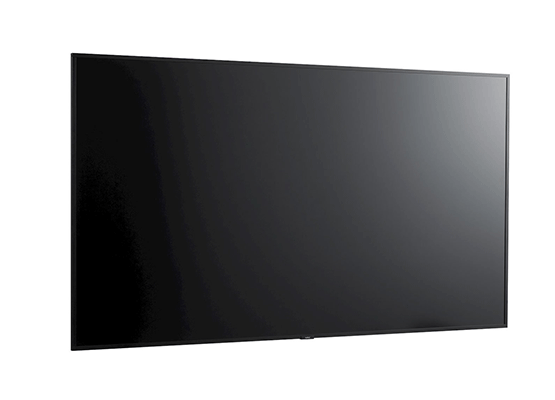

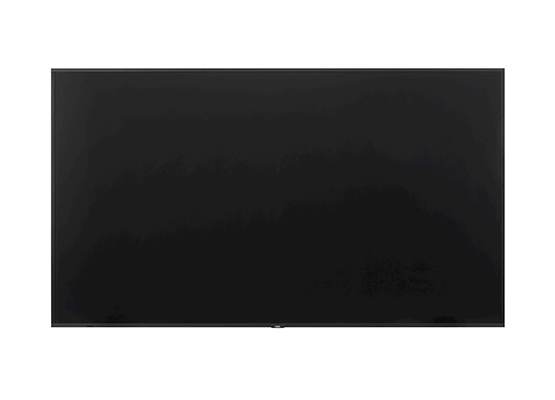

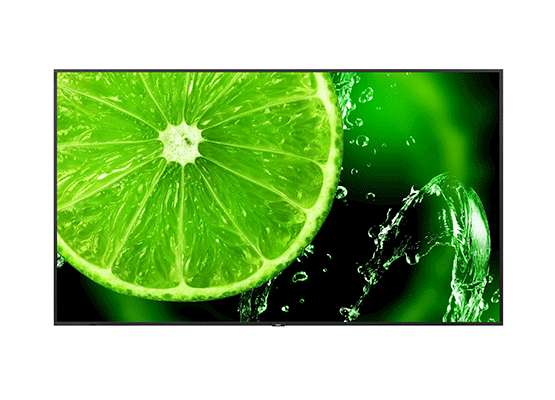

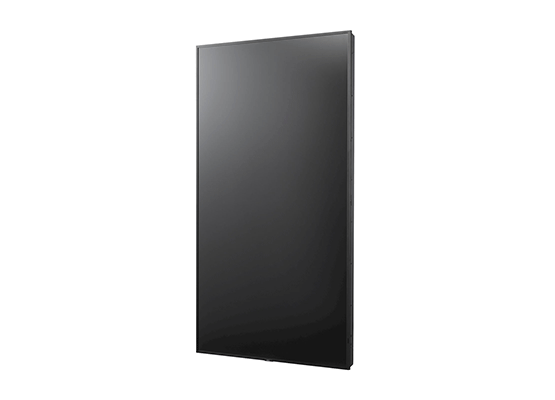

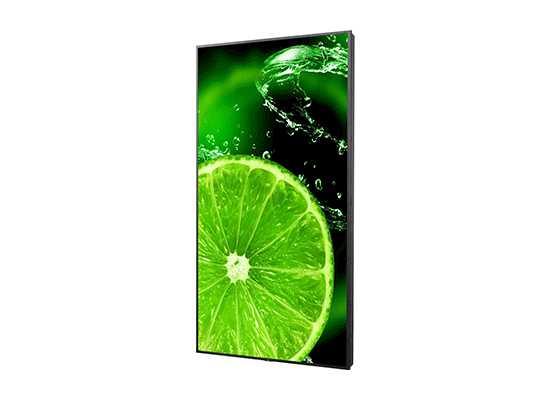

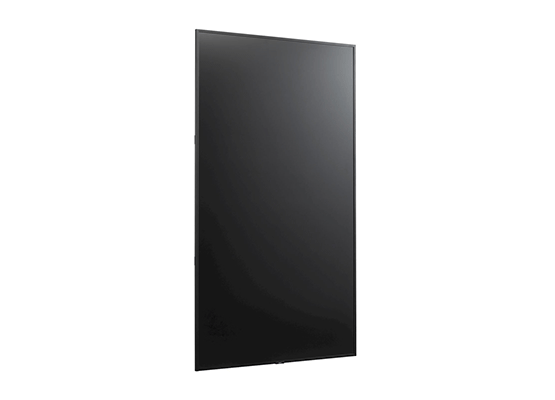

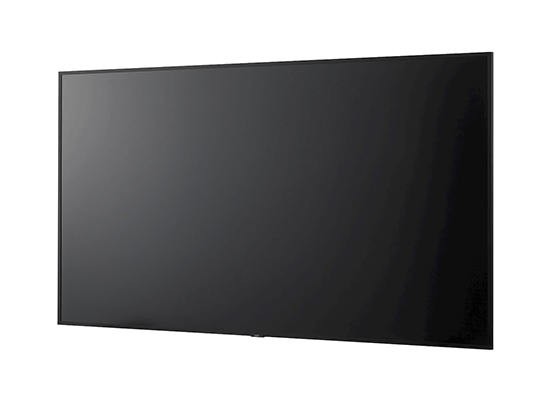

NEC Large E Series Displays
Professional 4K commercial displays, available in sizes 75" and 98".
Designed for the rigours of commercial usage, yet at an impressively low total cost of ownership, with 18/7 operating hours the MultiSync® Large Format Display delivers the functionality and reliability you need for large meeting rooms and digital signage.
Price on Application.
NEC Large E Series Displays
Functionality you need for presentations and digital signage.

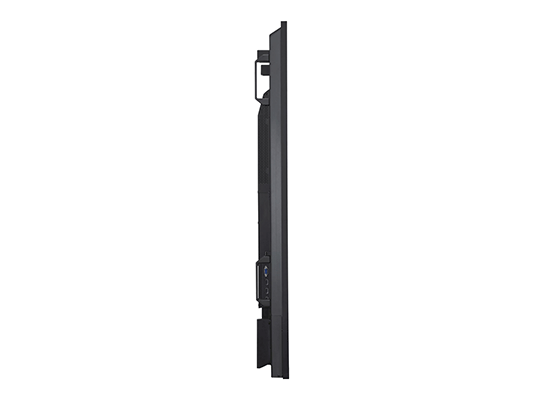

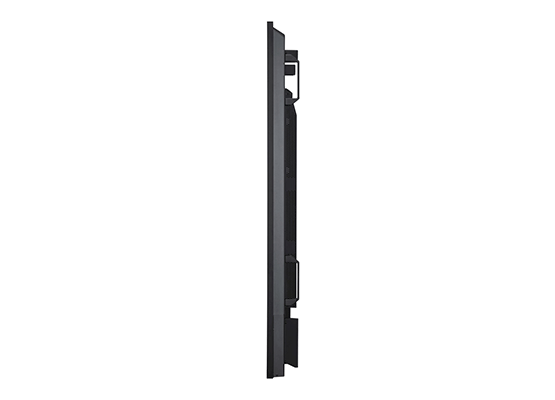

Designed for the rigours of commercial usage, yet at an impressively low total cost of ownership, with 18/7 operating hours the MultiSync® Essential Series Large Format Displays deliver the functionality and reliability you need for large meeting rooms and digital signage. The robust metal chassis which naturally dissipates heat is safeguarding long life performance, fire safety and sustainable waste management.
A professional haze level (Pro 28) supports excellent visibility without distracting reflections; combined with brightness of up to 400 cd/m², meets the demands of today’s meeting room environments. Presenters can feel confident, benefiting from instant meeting start-up, thanks to auto input detection and easy switching between HDMI sources.
An integrated MediaPlayer supports native UHD resolution and High Dynamic Range (HDR) for deep contrasts and natural looking content playback with auto-play function. Requiring no additional cables, external devices or signage software, the USB MediaPlayer enables a simple seamless professional signage solution.
Facilities managers will welcome the ability to remotely control their digital estate via the network thanks to the integrated LAN and NEC NaViSet Administrator 2 functionality making this display the perfect choice for corporate meeting rooms and entry level digital signage.
Technical Highlights
- Brightness: Up to 400 cd/m²
- Contrast Ratio: Up to 8000:1
- Viewing Angle: 178°
- Built-in Speakers: 2 x 10W

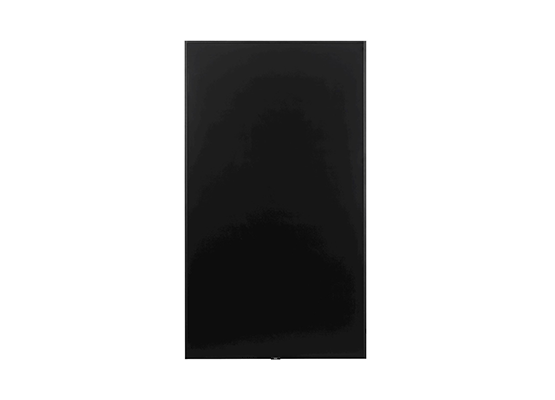

- Orientation: Landscape & Portrait
- Runtime: 18 hours/day, 7 days/week
- Warranty: 3-year advanced replacement
Sizes Available
E758 – 75"
E988 – 98"
Ideal for:

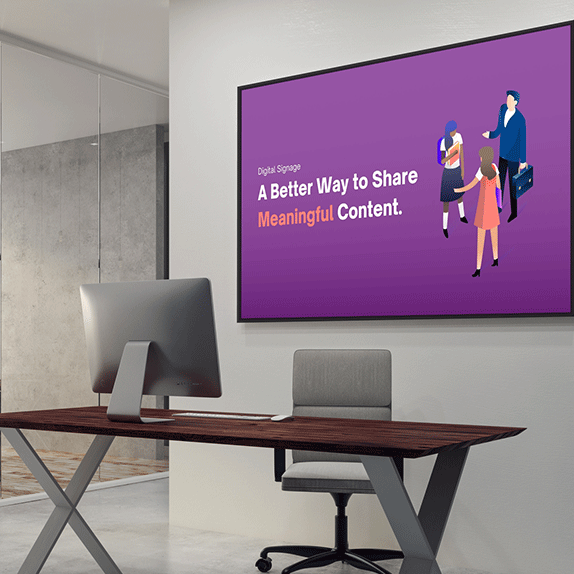

Corporate Meeting Rooms
Display presentations, dashboards, and video calls with reliable 4K clarity.

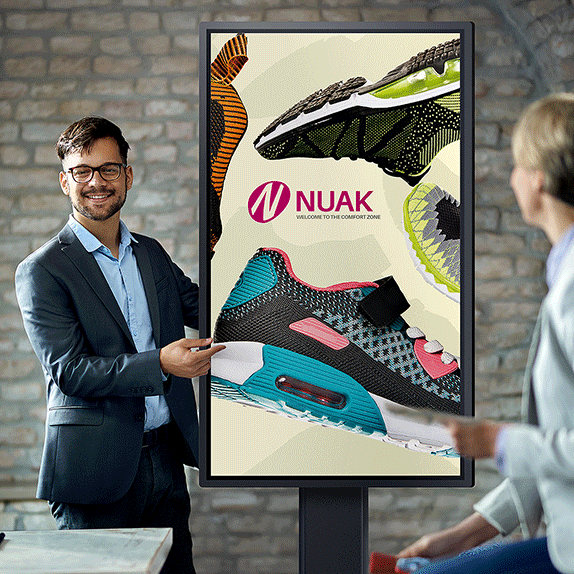

Retail Signage
Promote offers, menus, or branding content with crisp imagery and scheduled playback.
Education Spaces
Perfect for digital notices, remote learning, or classroom content sharing.
Reception Areas & Public Spaces
Welcome visitors, share company updates, or guide guests with dynamic messaging.
Government & Transport Hubs
Reliable 24/7 operation for timetables, announcements, and wayfinding.
Benefits
- Slim Design and Integrated Speakers – the aesthetic design is pleasing to the eye and enables easy, low cost installation.
- Future Ready Connectivity – featuring multiple industry standard digital and analogue signal inputs for flexible integration into AV infrastructures.
- Standalone operation – the display is designed for straightforward standalone operation due to integrated USB media player, speakers and scheduling functionality.
- Effortless content playback – the integrated USB media player supports various image video file formats for effortless and standalone content playback.
- Reduced Installation and Operating Costs – highly energy efficient LED backlit display ensures low power consumption, longer backlight lifetime and lighter design for easy transportation, mounting and integration.
Specifications
| LCD Panel | |
| Panel Technology | IPS |
| Size | 75" |
| Native Resolution | 3840 x 2160 |
| Brightness (Tyical Minimum) | 400 cd/m² |
| Contrast Ratio (Typical) | 1200:1 |
| Viewing Angle | 178° Vert., 178° Hor. (89U/89D/89L/89R) @ CR>10 |
| Aspect Ratio | 16:9 |
| Colour Gamut | 72% NTSC |
| Displayable Colours | Over 1.07 Billion (10bit) |
| Orientation | Landscape and Portrait |
| Panel Haze (%) | 25% |
| Connectivity Input Terminals | |
| Digital | HDMI (2.0 x 3 with HDCP 2.2) |
| Analog | VGA 15-pin D-Sub, Stereo Mini Jack 3.5mm |
| Audio | Digital Audio through HDMI x 3, Stereo Mini Jack |
| External Control | RS-232C, LAN (100Mb) with limitation |
| Data | USB 2.0 (Media Player Auto Playback), USB Type-C x 1 |
| Connectivity Output Terminals | |
| Audio | Headphone out (Mini Jack) |
| USB Type-C Power Delivery | 5V/3A |
| Power Consumption | |
| On (Typ/Max Brightness/All Max) | 145W/180W/250W |
| Network Standby | 2W |
| Normal Standby | 0.5W |
| Current Rating | 1.2A - 2.8A @ 100V - 240V |
| Speaker Rating | Integrated 10W x 10W |
| Physical Specifications | |
| Bezel Width (L/R, T/B) | 14.3 x 14.3 x 14.3 x 14.8mm |
| Net Dimensions (Without stand; W x H x D) | 1682.30 x 961.10 x 83.2mm |
| Net Weight (Without Stand) | 36.30kg |

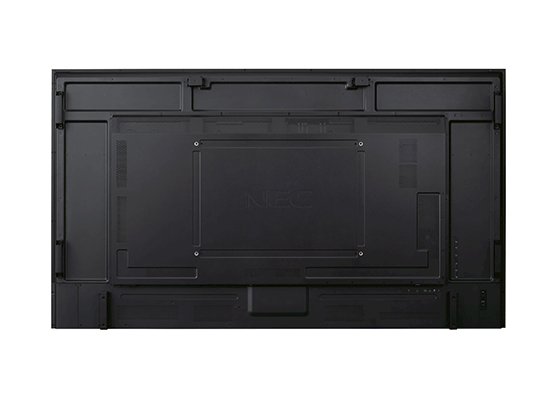

| VESA Hole Configuration | 600 x 400mm (M8) |
| Sensors | |
| Ambient Light Sensor | Integrated |
| Temperature Sensor | Internal Sensors |
| Environmental Conditions | |
| Operating Temperature | 0-40°C |
| Operating Humidity | 20-80% |
| Operating Altitude | 3000m |
| Additional Specifications | |
| Additional Features | Integrated USB Media Player, Variable picture modes (Dynamic/Standard/Energy Savings/Conferencing/HighBright/Custom/HDR), Advanced Video/Audio Settings, Wake on Video Signal, HDR 10 Support, Variable Sound Modes (Standard/Music/Movie/Custom), CEC Communication, First and Custom Detect Options, Sleep Timer, Built-In closed captioning, Integrated Ambien Light Sensor, Integrated Temperature Sensors, Local Dimming, Power USB (5V/3A)Amx/CEC/Crestron Connected Support. Joy Stick (Key Guide) NaViSet Administrator 2 Compatible. LAN or RS232 Communication (limited), USB-C Port for power delivery |
| Energy Star | 8.0 |
| Ships With | Power Cord, 3.0m HDMI Cable, Wireless Remote Control, Batteries, Setup Manual, |
Specifications
| LCD Panel | |
| Panel Technology | IPS |
| Size | 98" |
| Native Resolution | 3840 x 2160 |
| Brightness (Tyical Minimum) | 400 cd/m² |
| Contrast Ratio (Typical) | 1100:1 |
| Viewing Angle | 178° Vert., 178° Hor. (89U/89D/89L/89R) @ CR>10 |
| Aspect Ratio | 16:9 |
| Colour Gamut | 70% NTSC |
| Displayable Colours | Over 1.07 Billion (10bit) |
| Orientation | Landscape and Portrait |
| Panel Haze (%) | 25% |
| Connectivity Input Terminals | |
| Digital | HDMI (2.0 x 3 with HDCP 2.2) |
| Analog | VGA 15-pin D-Sub, Stereo Mini Jack 3.5mm |
| Audio | Digital Audio through HDMI x 3, Stereo Mini Jack |
| External Control | RS-232C, LAN (100Mb) with limitation |
| Data | USB 2.0 (Media Player Auto Playback), USB Type-C x 1 |
| Connectivity Output Terminals | |
| Audio | Line Out (Mini Jack) |
| USB Type-C Power Delivery | 5V/3A |
| Power Consumption | |
| On (Typ/Max Brightness/All Max) | 200W / 275W / 350W |
| Network Standby | 2W |
| Normal Standby | 0.5W |
| Current Rating | 1.6A - 3.9A @ 100V - 240V |
| Speaker Rating | Integrated 10W x 10W |
| Physical Specifications | |
| Bezel Width (L/R, T/B) | 15.9 x 15.9 x 15.9 x 15.9mm |
| Net Dimensions (Without stand; W x H x D) | 2194.70 x 1250.20 x 84.3mm |
| Net Weight (Without Stand) | 65.4kg |
| VESA Hole Configuration | 600 x 400mm (M8) |
| Sensors | |
| Ambient Light Sensor | Integrated |
| Temperature Sensor | Internal Sensors |
| Environmental Conditions | |
| Operating Temperature | 0-40°C |
| Operating Humidity | 20-80% |
| Operating Altitude | 3000m |
| Additional Specifications | |
| Additional Features | Integrated USB Media Player, Variable picture modes (Dynamic/Standard/Energy Savings/Conferencing/HighBright/Custom/HDR), Advanced Video/Audio Settings, Wake on Video Signal, HDR 10 Support, Variable Sound Modes (Standard/Music/Movie/Custom), CEC Communication, First and Custom Detect Options, Sleep Timer, Built-In closed captioning, Integrated Ambien Light Sensor, Integrated Temperature Sensors, Local Dimming, Power USB (5V/3A)Amx/CEC/Crestron Connected Support. Joy Stick (Key Guide) NaViSet Administrator 2 Compatible. LAN or RS232 Communication (limited), USB-C Port for power delivery |
| Energy Star | 8.0 |
| Ships With | Power Cord, 3.0m HDMI Cable, Wireless Remote Control, Batteries, Setup Manual, |
Expand All
Business Products Warranty Statement
This Sharp product is warranted against faults in material and manufacture for the period as stated in the table below.
In the event of any defect arising in the equipment during the warranty period, such repairs should only be carried out by the Dealer from which the unit was originally purchased or a Service Centre approved by Sharp to service this type of equipment These repairs would be carried out at no charge to the owner, subject to the conditions specified herein.
This warranty does not extend to defects or injuries caused by or resulting from causes not attributable to faulty parts or the manufacture of the product, including but not limited to, defect or injury caused by or resulting from misuse, abuse, neglect, lack of maintenance, accidental damage, improper voltage, liquid spillage, vermin infestation, software, or any alterations made to the product which are not authorised by Sharp.
Please retain your sales documentation, as this should be produced to validate a warranty claim. This warranty is in addition to and in no way limits, varies or excludes any implied rights and remedies under any relevant legislation in the country of sale.
This warranty does not cover transportation to and from the Sharp Approved Service Centre. Goods presented for repair may be replaced by refurbished goods of the same type rather than being repaired. Refurbished parts may be used to repair the goods. The repair of your goods may result in the loss of user generated data, please ensure that you have saved this data elsewhere prior to repair.
Warranty Period
- Data Projector 24 months (excluding lamps and air filters)
- Copier / Printer 6 months
- Electronic Cash Registers 12 months
- Facsimile 12 months
- Information Display Panel 36 months
- POS Terminals 12 months
- AL Copier 12 months
- Calculator 12 months
- Personal Organiser 12 months
Important Notice: This warranty applies to products sold in New Zealand.
