PN-P Series UHD Professional Displays
Professional 4K UHD displays, available in sizes in sizes from 43" to 65".
Experience pixel-perfect clarity and high-end panel quality with Sharp’s new fully commercial PN-P Series large format displays.
Engineered for premium digital signage, the PN-P Series features Sharp’s proprietary SpectraView™ Engine with out-of-the-box factory calibration for consistent, high-quality visuals.
Price on Application.
Sharp PN-P Series UHD Professional Displays
Premium 4K performance for always-on environments
Create pixel perfect imagery with the high-end panel quality of the new fully commercial Sharp PN-P Series large format displays. By implementing premium features and focusing on creating impressionable digital signage experiences, the PN-P series gives customers an elite display option with its one-of-a-kind and proprietary SpectraView Engine capabilities, these displays offer out-of-the-box factory panel calibration, allowing for consistent visuals out of the box.
The new series contain a all metal chassis, allowing for a more robust design necessary for commercial applications while maintaining the attractive aesthetics that allow the focus of onlookers to be on what matters - the message. Robust connectivity interface allows customers to have up-to-date connectivity options while also allowing for enhanced daisy chain capabilities when tying displays together for video or control signal distribution. The Sharp PN-P series boasts 700 cd/m2 brightness which is ideal for a majority of high end digital signage applications in restaurants, command and control, retail, healthcare and corporate environments when high-end and feature rich displays are necessary to convey important messaging.
Technical Highlights
- Brightness: 700 cd/m²
- Contrast Ratio: Up to 12000:1
- Viewing Angle: 178°
- Built-in Speakers: 2 x 10W
- Orientation: Landscape & Portrait
- Runtime: 24 hours/day, 7 days/week
- Warranty: 3-years
Sizes Available
PN-P436 – 43"
PN-P506 – 50"
PN-P556 – 55"
PN-P656 – 65"
Ideal for:

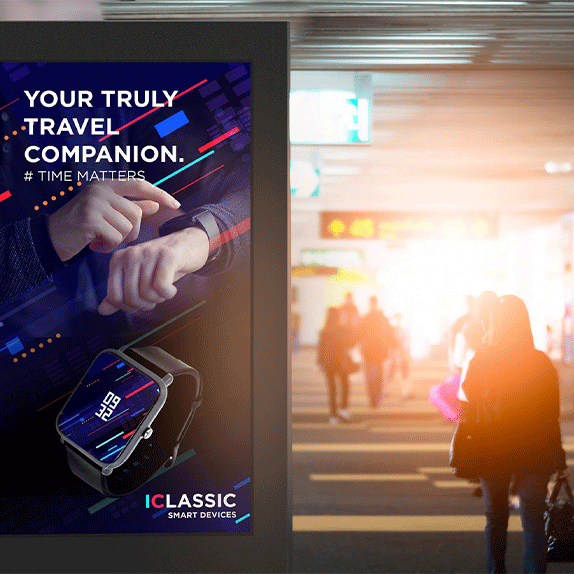

Retail
Eye-catching product promotions and menu boards with true-to-life color and brightness.

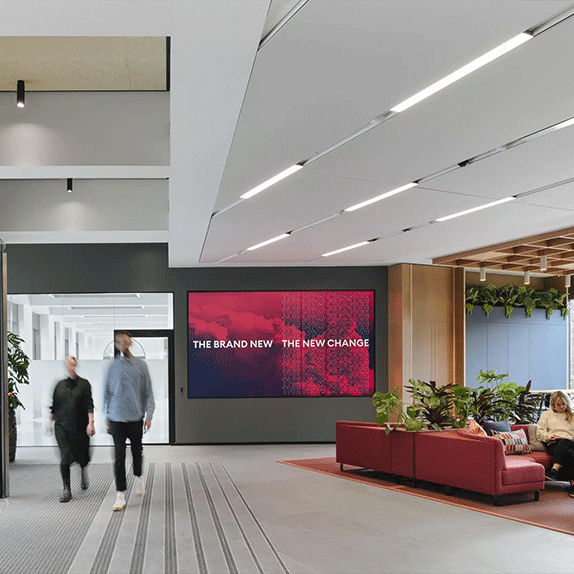

Corporate Offices
Modern presentation, conferencing, and digital messaging tools that match your brand.
Transportation & Public Spaces
Durable, always-on displays for real-time information and guidance.
Healthcare & Education
Clear, reliable visuals for communication, instruction or wayfinding.
Command & Control Rooms
High-precision displays for real-time monitoring and mission-critical content.
Key Features
Industrial-strength, premium-grade panel with additional thermal protection, internal temperature sensors with self-diagnostics and fan-based technology, allow for 24/7 operation
- 4K UHD native resolution allows for crystal clear imagery and messaging that become more vivid and lifelike than ever before!
- Integrated USB-C input with DP-Alt Mode, 65W Power Delivery and Hub functionality allow for more streamlined operations when using as a presentation type of device

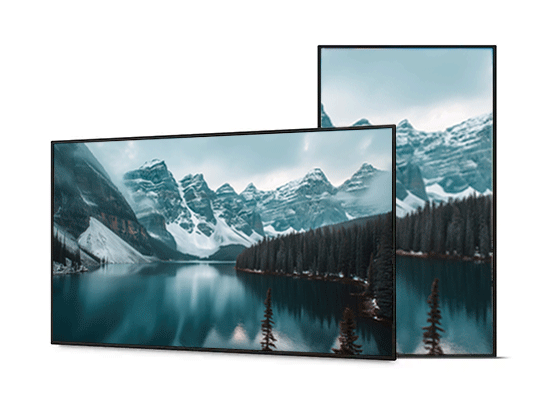

- Landscape and Portrait orientation allows for flexibility of installation dependent on your needs
- Bidirectional and Full External Control allows for easy integration into control systems via LAN or RS232C
- LAN Daisy Chain passes RS-232C, TCP-IP and IR signal to easily control groups of displays without having to run extra cable
- 700 cd/m2 brightness with high haze panel will capture the attention of audience in almost any situation
- Enhanced Daisy Chain Capabilities through both HDMI and DisplayPort Out Connections passing any digital input into the display
- Failover Capabilities with full Input Change functionality allow peace of mind as the display will automatically switch to a secondary or tertiary source if the primary source fails
- Energy Star 8.0 Certified Product
- NaViSet Administrator 2 Free software solution that greatly eases administration and management of larger display device installations
Specifications
| LCD Module | |
| Panel Technology | IPS |
| Display screen size | 941.18 x 529.42mm |
| Native Resolution | 3840 x 2160 |
| Brightness (Typ) | 700 cd/m2 |
| Contrast Ratio (Typ) | 1200:1 |
| Viewing Angle | 178° Vert., 178° Hor. (89U/89D/89L/89R) @ CR>10 |
| Aspect Ratio | 16:9 |
| Colour Gamut | 92% DCI |
| Displayable Colors | Over 1.07 Billion (10bit dithered) |
| Orientation | Landscape and Portrait (CCW Rotation) |
| Panel Haze (%) | 25% |

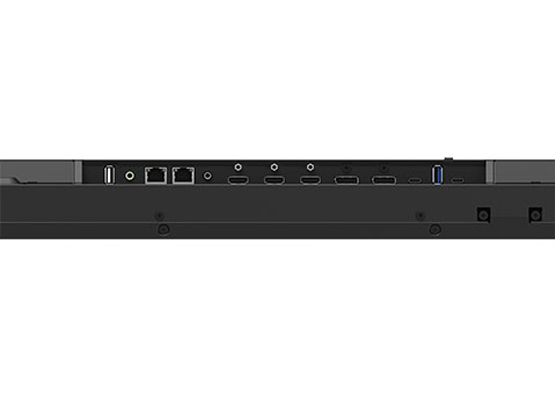

| Connectivity Input Terminals | |
| Digital | HDMI 2.0 x2, DP 1.4 x1, USB-C (Upstream with DP-Alt Mode and 65W Power Delivery) |
| Analog | D-sub 9 pin x 1 |
| Audio | 3.5 mm mini stereo jack x 1 |
| External Control | LAN (100Mbit), 3.5mm Mini Jack IR Remote, RS-232C |
| Data | USB-C (Upstream with DP-Alt Mode and 65W Power Delivery), USB-A 2.0 (Service), USB-A (Downstream), USB-C (Downstream) |
| Connectivity Output Terminals | |
| Digital | HDMI x1, DisplayPort x1 (Carries DP or DP-Alt signals via USB-C) |
| Analog | N/A |
| Audio | 3.5mm Mini Jack |
| External Control | LAN (100Mbit, carries RS-232C and IR) |
| Power Consumption | |
| On (Typ/Max Brightness/All Max) | 115W / 180W / 365W |
| Network Standby | 0.5W |
| Normal Standby | 2W |
| Current Rating | 4.1A - 1.7A @ 100V - 240V |
| Speaker Rating | Optional through SP-RM3a |
| Physical Specifications | |
| Bezel Width (L/R, T/B) | 11.0mm/11.0mm, 11.0mm/13.9mm |
| Net Dimensions (Without stand; W x H x D) | 965.0 x 557.2 x 66.5mm |
| Net Weight | 13.5kg |
| VESA Hole Configuration | 4 x M6 (300 x 300) |
| Sensors | |
| Ambient Light Sensor | Integrated |
| Human Sensor | Optional through PN-KTRC3 |
| Temperature Sensor | Integrated and programmable; linked to cooling fans |
| NFC Sensor | N/A |
| Environmental Conditions | |
| Operating Temperature | 0°C to 40°C |
| Operating Humidity | 20 - 80% |
| Operating Altitude | 3000m |
| Additional Specifications | |
| Warranty | 3 year warranty |
| Additional Features | AMX Support, CEC Support through HDMI, Crestron Connected V2 Support with XiO Cloud, IEEE802.1x Wired Network Authentication, SSH, NaViSet Secure, Signed FW upon Install, Admin Login, IP Address Filtering, MAC Address Filtering, SNMP V1/2/3, USB/LAN Lockout Capability, PD Comms Tool Support, NEC Firmware Update Tool, Display Browser Control, Display Wall Calibrator Compatible, HDR Support (PQ, HLG, HDR10), Key Guide, NaViSet Administrator 2 Compatible, OSD Rotation for Portrait Orientation, SDM Compatible, USB Power Delivery via USB-C (65W), Raspberry Pi Compute Module Compatible, Real-Time Clock, Local Dimming, Multi Picture Mode, SpectraView Engine Technology, Quick Start, Internet Time Server, Auto ID/IP Settings, Energy Star 8.0 |
| Ships With | 3m AC Power Cord, 2.0m HDMI Cable, IR Remote Control, Batteries, AAA Batteries, Screw (M4 x10 with washer), Clamp, Optional Cover (SDM/CMIF) |
Specifications
| LCD Module | |
| Panel Technology | IPS |
| Display screen size | 1095.84 x 616.41mm |
| Native Resolution | 3840 x 2160 |
| Brightness (Typ) | 700 cd/m2 |
| Contrast Ratio (Typ) | 1200:1 |
| Viewing Angle | 178° Vert., 178° Hor. (89U/89D/89L/89R) @ CR>10 |
| Aspect Ratio | 16:9 |
| Colour Gamut | 92% DCI |
| Displayable Colors | Over 1.07 Billion (10bit dithered) |
| Orientation | Landscape and Portrait (CCW Rotation) |
| Panel Haze (%) | 25% |
| Connectivity Input Terminals | |
| Digital | HDMI 2.0 x2, DP 1.4 x1, USB-C (Upstream with DP-Alt Mode and 65W Power Delivery) |
| Analog | D-sub 9 pin x 1 |
| Audio | 3.5 mm mini stereo jack x 1 |
| External Control | LAN (100Mbit), 3.5mm Mini Jack IR Remote, RS-232C |
| Data | USB-C (Upstream with DP-Alt Mode and 65W Power Delivery), USB-A 2.0 (Service), USB-A (Downstream), USB-C (Downstream) |
| Connectivity Output Terminals | |
| Digital | HDMI x1, DisplayPort x1 (Carries DP or DP-Alt signals via USB-C) |
| Analog | N/A |
| Audio | 3.5mm Mini Jack |
| External Control | LAN (100Mbit, carries RS-232C and IR) |
| Power Consumption | |
| On (Typ/Max Brightness/All Max) | 115W / 180W / 365W |
| Network Standby | 0.5W |
| Normal Standby | 2W |
| Current Rating | |
| Speaker Rating | Optional through SP-RM3a |
| Physical Specifications | |
| Bezel Width (L/R, T/B) | 11.0mm/11.0mm, 11.0mm/13.9mm |
| Net Dimensions (Without stand; W x H x D) | |
| Net Weight | kg |
| VESA Hole Configuration | 4 x M6 (300 x 300) |
| Sensors | |
| Ambient Light Sensor | Integrated |
| Human Sensor | Optional through PN-KTRC3 |
| Temperature Sensor | Integrated and programmable; linked to cooling fans |
| NFC Sensor | N/A |
| Environmental Conditions | |
| Operating Temperature | 0°C to 40°C |
| Operating Humidity | 20 - 80% |
| Operating Altitude | 3000m |
| Additional Specifications | |
| Warranty | 3 year warranty |
| Additional Features | AMX Support, CEC Support through HDMI, Crestron Connected V2 Support with XiO Cloud, IEEE802.1x Wired Network Authentication, SSH, NaViSet Secure, Signed FW upon Install, Admin Login, IP Address Filtering, MAC Address Filtering, SNMP V1/2/3, USB/LAN Lockout Capability, PD Comms Tool Support, NEC Firmware Update Tool, Display Browser Control, Display Wall Calibrator Compatible, HDR Support (PQ, HLG, HDR10), Key Guide, NaViSet Administrator 2 Compatible, OSD Rotation for Portrait Orientation, SDM Compatible, USB Power Delivery via USB-C (65W), Raspberry Pi Compute Module Compatible, Real-Time Clock, Local Dimming, Multi Picture Mode, SpectraView Engine Technology, Quick Start, Internet Time Server, Auto ID/IP Settings, Energy Star 8.0 |
| Ships With | 3m AC Power Cord, 2.0m HDMI Cable, IR Remote Control, Batteries, AAA Batteries, Screw (M4 x10 with washer), Clamp, Optional Cover (SDM/CMIF) |
Specifications
| LCD Module | |
| Panel Technology | IPS |
| Display screen size | 1209.60 x 680.40mm |
| Native Resolution | 3840 x 2160 |
| Brightness (Typ) | 700 cd/m2 |
| Contrast Ratio (Typ) | 1200:1 |
| Viewing Angle | 178° Vert., 178° Hor. (89U/89D/89L/89R) @ CR>10 |
| Aspect Ratio | 16:9 |
| Colour Gamut | 92% DCI |
| Displayable Colors | Over 1.07 Billion (10bit dithered) |
| Orientation | Landscape and Portrait (CCW Rotation) |
| Panel Haze (%) | 25% |
| Connectivity Input Terminals | |
| Digital | HDMI 2.0 x2, DP 1.4 x1, USB-C (Upstream with DP-Alt Mode and 65W Power Delivery) |
| Analog | D-sub 9 pin x 1 |
| Audio | 3.5 mm mini stereo jack x 1 |
| External Control | LAN (100Mbit), 3.5mm Mini Jack IR Remote, RS-232C |
| Data | USB-C (Upstream with DP-Alt Mode and 65W Power Delivery), USB-A 2.0 (Service), USB-A (Downstream), USB-C (Downstream) |
| Connectivity Output Terminals | |
| Digital | HDMI x1, DisplayPort x1 (Carries DP or DP-Alt signals via USB-C) |
| Analog | N/A |
| Audio | 3.5mm Mini Jack |
| External Control | LAN (100Mbit, carries RS-232C and IR) |
| Power Consumption | |
| On (Typ/Max Brightness/All Max) | 115W / 180W / 365W |
| Network Standby | 0.5W |
| Normal Standby | 2W |
| Current Rating | 4.1A - 1.7A @ 100V - 240V |
| Speaker Rating | Optional through SP-RM3a |
| Physical Specifications | |
| Bezel Width (L/R, T/B) | 11.0mm/11.0mm, 11.0mm/13.9mm |
| Net Dimensions (Without stand; W x H x D) | 1235.6 x 709.3 x 59.5mm |
| Net Weight | 20.5kg |
| VESA Hole Configuration | 4 x M6 (300 x 300) |
| Sensors | |
| Ambient Light Sensor | Integrated |
| Human Sensor | Optional through PN-KTRC3 |
| Temperature Sensor | Integrated and programmable; linked to cooling fans |
| NFC Sensor | N/A |
| Environmental Conditions | |
| Operating Temperature | 0°C to 40°C |
| Operating Humidity | 20 - 80% |
| Operating Altitude | 3000m |
| Additional Specifications | |
| Warranty | 3 year warranty |
| Additional Features | AMX Support, CEC Support through HDMI, Crestron Connected V2 Support with XiO Cloud, IEEE802.1x Wired Network Authentication, SSH, NaViSet Secure, Signed FW upon Install, Admin Login, IP Address Filtering, MAC Address Filtering, SNMP V1/2/3, USB/LAN Lockout Capability, PD Comms Tool Support, NEC Firmware Update Tool, Display Browser Control, Display Wall Calibrator Compatible, HDR Support (PQ, HLG, HDR10), Key Guide, NaViSet Administrator 2 Compatible, OSD Rotation for Portrait Orientation, SDM Compatible, USB Power Delivery via USB-C (65W), Raspberry Pi Compute Module Compatible, Real-Time Clock, Local Dimming, Multi Picture Mode, SpectraView Engine Technology, Quick Start, Internet Time Server, Auto ID/IP Settings, Energy Star 8.0 |
| Ships With | 3m AC Power Cord, 2.0m HDMI Cable, IR Remote Control, Batteries, AAA Batteries, Screw (M4 x10 with washer), Clamp, Optional Cover (SDM/CMIF) |
Specifications
| LCD Module | |
| Panel Technology | IPS |
| Display screen size | 1428.48 x 803.52 (mm) |
| Native Resolution | 3840 x 2160 |
| Brightness (Typ) | 700 cd/m2 |
| Contrast Ratio (Typ) | 1200:1 |
| Viewing Angle | 178° Vert., 178° Hor. (89U/89D/89L/89R) @ CR>10 |
| Aspect Ratio | 16:9 |
| Colour Gamut | 92% DCI |
| Displayable Colors | Over 1.07 Billion (10bit dithered) |
| Orientation | Landscape and Portrait (CCW Rotation) |
| Panel Haze (%) | 25% |
| Connectivity Input Terminals | |
| Digital | HDMI 2.0 x2, DP 1.4 x1, USB-C (Upstream with DP-Alt Mode and 65W Power Delivery) |
| Analog | D-sub 9 pin x 1 |
| Audio | 3.5 mm mini stereo jack x 1 |
| External Control | LAN (100Mbit), 3.5mm Mini Jack IR Remote, RS-232C |
| Data | USB-C (Upstream with DP-Alt Mode and 65W Power Delivery), USB-A 2.0 (Service), USB-A (Downstream), USB-C (Downstream) |
| Connectivity Output Terminals | |
| Digital | HDMI x1, DisplayPort x1 (Carries DP or DP-Alt signals via USB-C) |
| Analog | N/A |
| Audio | 3.5mm Mini Jack |
| External Control | LAN (100Mbit, carries RS-232C and IR) |
| Power Consumption | |
| On (Typ/Max Brightness/All Max) | 160W / 255W / 435W |
| Network Standby | 0.5W |
| Normal Standby | 2W |
| Current Rating | 5.0A - 2.1A @ 100V - 240V |
| Speaker Rating | Optional through SP-RM3a |
| Physical Specifications | |
| Bezel Width (L/R, T/B) | 11.0mm/11.0mm, 11.0mm/13.9mm |
| Net Dimensions (Without stand; W x H x D) | 1454.5 x 832.4 x 59.5mm |
| Net Weight | 26.0kg |
| VESA Hole Configuration | 4 x M6 (400 x 400) |
| Sensors | |
| Ambient Light Sensor | Integrated |
| Human Sensor | Optional through PN-KTRC3 |
| Temperature Sensor | Integrated and programmable; linked to cooling fans |
| NFC Sensor | N/A |
| Environmental Conditions | |
| Operating Temperature | 0°C to 40°C |
| Operating Humidity | 20 - 80% |
| Operating Altitude | 3000m |
| Additional Specifications | |
| Warranty | 3 year warranty |
| Additional Features | AMX Support, CEC Support through HDMI, Crestron Connected V2 Support with XiO Cloud, IEEE802.1x Wired Network Authentication, SSH, NaViSet Secure, Signed FW upon Install, Admin Login, IP Address Filtering, MAC Address Filtering, SNMP V1/2/3, USB/LAN Lockout Capability, PD Comms Tool Support, NEC Firmware Update Tool, Display Browser Control, Display Wall Calibrator Compatible, HDR Support (PQ, HLG, HDR10), Key Guide, NaViSet Administrator 2 Compatible, OSD Rotation for Portrait Orientation, SDM Compatible, USB Power Delivery via USB-C (65W), Raspberry Pi Compute Module Compatible, Real-Time Clock, Local Dimming, Multi Picture Mode, SpectraView Engine Technology, Quick Start, Internet Time Server, Auto ID/IP Settings, Energy Star 8.0 |
| Ships With | 3m AC Power Cord, 2.0m HDMI Cable, IR Remote Control, Batteries, AAA Batteries, Screw (M4 x10 with washer), Clamp, Optional Cover (SDM/CMIF) |
