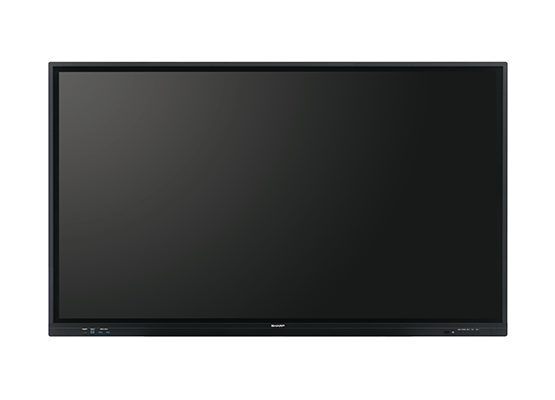

PN-LC Series Interactive Displays
Interactive displays, available in sizes from 65" to 86".
With a sleek design, responsive touch technology, and built-in smart features, the Sharp PN-LC Series is the ideal solution for organisations looking to upgrade collaboration—without overcomplicating it.
It’s where simplicity meets interactivity, backed by Sharp's trusted performance.
Price on Application.
Sharp PN-LC Series Interactive Displays
Touch-Enabled Collaboration. Simplified.
Empower smarter meetings, lessons, and brainstorming sessions with the Sharp PN-LC Series—a range of affordable interactive displays designed for seamless collaboration. Available in sizes from 65" to 86", these touchscreen displays combine responsive performance, easy-to-use features, and Sharp’s renowned reliability, making them ideal for business and education environments alike.
Whether you’re presenting, teaching, or ideating in real time, the PN-LC Series helps teams connect, create, and communicate—without the complexity.
Technical Highlights
- Brightness: Up to 450 cd/m²
- Contrast Ratio: Up to 1200:1
- Viewing Angle: 178°
- Built-in Speakers: 2 x 15W
- Runtime: 16 hours/day, 7 days/week
- Warranty: 3-years
Sizes Available
PN-LC652 – 65"
PN-LC752 – 75"
PN-LC862 – 86"
Ideal for:
Corporate Meeting Rooms
Streamline presentations, video calls, and team collaboration in one all-in-one display
Classrooms & Lecture Theatres
Engage students with interactive lessons and multimedia content, with easy switching between tools and inputs.
Training & Workshops
Annotate in real time, share ideas visually, and make collaboration hands-on.
Public Sector & Government
Modernise your meeting spaces with simple, secure, and interactive technology.
Key Features
Responsive 20-Point Touch
Experience smooth, intuitive interaction with support for up to 20 simultaneous touchpoints. Write, draw, swipe, and gesture with ease—perfect for collaborative work, classroom activities, or dynamic presentations.- Integrated Android System

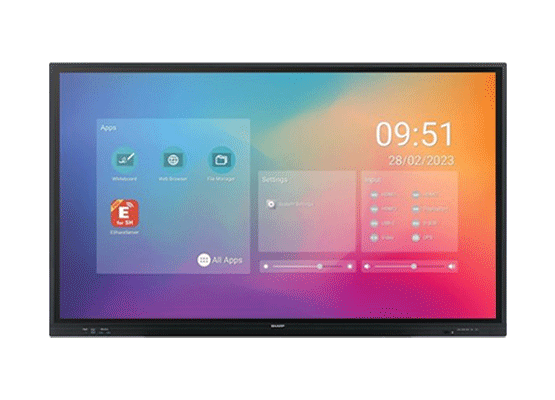

No PC required. The PN-LC Series includes a built-in Android platform, allowing users to access apps, whiteboarding tools, and file storage directly from the display. - Sharp Pen Software Compatibility
Enhance the interactive experience with Sharp's Pen Software, offering annotation tools, handwriting recognition, and flexible workspace features for brainstorming, teaching, and idea sharing. - 4K Ultra HD Resolution
Bring visuals to life with crystal-clear 3840 x 2160 resolution. Whether you're reviewing content, sharing slides, or exploring visual ideas, the PN-LC delivers exceptional detail and sharpness. - Built-In Speakers & Connectivity
With integrated 20W speakers, HDMI, USB-C, LAN, and multiple input/output options, these displays are ready to connect to your existing systems—whether you're plugging in a laptop, camera, or external PC. - OPS Slot for Expandability
Future-proof your investment with an OPS slot for optional PC integration. Run Windows applications natively and expand functionality to meet your evolving needs.
Specifications
| LCD | |
| Panel Technology | LED, Direct lit |
| Active Screen Area | 1,428.5 x 803.5 mm |
| Native Resolution | 3840 x 2160 |
| Brightness (Typical) | 450 cd/m2 |
| Contrast Ratio (Typical) | 1200:1 |
| Max. Display Colours (approx.) | 1.07 Billion Colours |
| Viewing Angle | 178° Vert., 178° Hor. @ CR>10:1 |
| Aspect Ratio | 16:9 |
| Orientation | Landscape and Portrait |
| Response Time | 8 ms (grey to grey, avg.) |
| Runtime | 16/7 |
| Touchscreen | |
| Touch Technology | IR (lnfrared blocking detection method) with zero-bonding technology |
| PC Connection Port | USB (3.0 compliant) (Type B) x 2 (Front x 1, Rear x 1) |
| Power Supply for Touchpanel | Supplied from main unit |
| Multi Touch | 20 points |
| Protection Glass | Thickness: Approx. 3.2 mm Shock resistance: 130 cm |
| Touch Pen | Dual-sided passive pen x 2 |
| Input Terminals | |
| Front | HDMI (HDCP2.3 compatible, CEC compatible) x 1 |
| Rear | HDMI (HDCP2.3 compatible, CEC compatible) x 2, USB Type-C (DisplayPort 1.2 Alt mode, HDCP 2.3, USB Power Delivery 65W compatible, Touch signal, USB pass through) x 1, Display Port (DisplayPort 1.2, HDCP compatible) x 1, Mini D-sub 15-pin x 1, AV mini jack x 1, 3.5 mm-diameter mini stereo jack x 1 |
| Output Terminals | |
| Rear | HDMI x 1, 3.5 mm-diameter mini stereo jack x 1, S/PDIF x 1 |
| System Terminals | |
| Front | USB 3.0 TypeA x 2, USB 3.0 TypeB (for touch) x 1 |
| Rear | USB 3.0 TypeA x 2, USB 3.0 TypeB (for touch) x 1, LAN port (10Base-T/100Base-TX/1000BASE-T) x 1, RS-232C IN x 1 |
| System | |
| CPU | Arm® Cortex«> - ASS processor (quad core) |
| Memory | 4GB |
| Internal Storage | 16GB |
| Wireless LAN | IEEE802.11 ac/n/a/g/b (Use Wireless USB Adaptor) |
| Expansion Slot | OPS Slot (19 V, 4.74 A, 90 W) |
| Speaker Output | Speaker Output 15 W + 15 W w/front facing speakers |
| Mounting | 4 points, 600 x 400 mm pitch, MB screw |
| Power | |
| Power Consumption (Factory Setting (Shipment) / Max rating) | 180 W / 390 W |
| Network Standby | <0.5W |
| Power Supply | 100V - 240V AC, 50/60 Hz |
| Physical Specifications | |
| Net Dimensions (Without stand; W x H x D) | 1511.6 x 917.9 x 85.9mm |
| Net Weight | 38.5kg |
| Sensors | |
| Ambient Light Sensor | Integrated |
| Human Sensor | Optional through PN-KTRC3 |
| Temperature Sensor | Integrated and programmable; linked to cooling fans |
| NFC Sensor | N/A |
| Environmental Conditions | |
| Operating Temperature | 5° - 35° C |
| Operating Humidity | 20-80% |
| Additional Specifications | |
| Limited Warranty | 3 Year Warranty incl. Backlight |
| Ships With | AC power cord, remote control unit, remote control unit battery (AM. size) x 2, set-up manual, blank sticker, cable clamp x 3, USB cable, pen tray, touch pen x 2, Wireless Adapter |
Specifications
| LCD | |
| Panel Technology | LED, Direct lit |
| Active Screen Area | 1,649.7 x 927.9 mm |
| Native Resolution | 3840 x 2160 |
| Brightness (Typical) | 450 cd/m2 |
| Contrast Ratio (Typical) | 1200:1 |
| Max. Display Colours (approx.) | 1.07 Billion Colours |
| Viewing Angle | 178° Vert., 178° Hor. @ CR>10:1 |
| Aspect Ratio | 16:9 |
| Orientation | Landscape and Portrait |
| Response Time | 8 ms (grey to grey, avg.) |
| Runtime | 16/7 |
| Touchscreen | |
| Touch Technology | IR (lnfrared blocking detection method) with zero-bonding technology |
| PC Connection Port | USB (3.0 compliant) (Type B) x 2 (Front x 1, Rear x 1) |
| Power Supply for Touchpanel | Supplied from main unit |
| Multi Touch | 20 points |
| Protection Glass | Thickness: Approx. 3.2 mm Shock resistance: 130 cm |
| Touch Pen | Dual-sided passive pen x 2 |
| Input Terminals | |
| Front | HDMI (HDCP2.3 compatible, CEC compatible) x 1 |
| Rear | HDMI (HDCP2.3 compatible, CEC compatible) x 2, USB Type-C (DisplayPort 1.2 Alt mode, HDCP 2.3, USB Power Delivery 65W compatible, Touch signal, USB pass through) x 1, Display Port (DisplayPort 1.2, HDCP compatible) x 1, Mini D-sub 15-pin x 1, AV mini jack x 1, 3.5 mm-diameter mini stereo jack x 1 |
| Output Terminals | |
| Rear | HDMI x 1, 3.5 mm-diameter mini stereo jack x 1, S/PDIF x 1 |
| System Terminals | |
| Front | USB 3.0 Type A x 2, USB 3.0 Type B (for touch) x 1 |
| Rear | USB 3.0 Type A x 2, USB 3.0 Type B (for touch) x 1, LAN port (10Base-T/100Base-TX/1000BASE-T) x 1, RS-232C IN x 1 |
| System | |
| CPU | Arm® Cortex«> - A55 processor (quad core) |
| Memory | 4GB |
| Internal Storage | 16GB |
| Wireless LAN | IEEE802.11 ac/n/a/g/b (Use Wireless USB Adaptor) |
| Expansion Slot | OPS Slot (19 V, 4.74 A, 90 W) |
| Speaker Output | Speaker Output 15 W + 15 W w/front facing speakers |
| Mounting | 4 points, 800 x 400 mm pitch, MB screw |
| Power | |
| Power Consumption (Factory Setting (Shipment) / Max rating) | 200 W / 420 W |
| Network Standby | <0.5W |
| Power Supply | 100V - 240V AC, 50/60 Hz |
| Physical Specifications | |
| Net Dimensions (Without stand; W x H x D) | 1722.5 x 1032.1 x 87.1mm |
| Net Weight | 51kg |
| Sensors | |
| Ambient Light Sensor | N/A |
| Human Sensor | N/A |
| Temperature Sensor | Integrated |
| NFC Sensor | N/A |
| Environmental Conditions | |
| Operating Temperature | 5° - 35° C |
| Operating Humidity | 20-80% |
| Additional Specifications | |
| Limited Warranty | 3 Year Warranty incl. Backlight |
| Ships With | AC power cord, remote control unit, remote control unit battery (AM. size) x 2, set-up manual, blank sticker, cable clamp x 3, USB cable, pen tray, touch pen x 2, Wireless Adapter |
Specifications
| LCD | |
| Panel Technology | LED, Direct lit |
| Active Screen Area | 1,895.0 x 1,066.0 mm |
| Native Resolution | 3840 x 2160 |
| Brightness (Typical) | 450 cd/m2 |
| Contrast Ratio (Typical) | 12000:1 |
| Max. Display Colours (approx.) | 1.07 Billion Colours |
| Viewing Angle | 178° Vert., 178° Hor. @ CR>10:1 |
| Aspect Ratio | 16:9 |
| Orientation | Landscape and Portrait |
| Response Time | 8 ms (grey to grey, avg.) |
| Runtime | 16/7 |
| Touchscreen | |
| Touch Technology | IR (lnfrared blocking detection method) with zero-bonding technology |
| PC Connection Port | USB (3.0 compliant) (Type B) x 2 (Front x 1, Rear x 1) |
| Power Supply for Touchpanel | Supplied from main unit |
| Multi Touch | 20 points |
| Protection Glass | Thickness: Approx. 3.2 mm Shock resistance: 130 cm |
| Touch Pen | Dual-sided passive pen x 2 |
| Input Terminals | |
| Front | HDMI (HDCP2.3 compatible, CEC compatible) x 1 |
| Rear | HDMI (HDCP2.3 compatible, CEC compatible) x 2, USB Type-C (DisplayPort 1.2 Alt mode, HDCP 2.3, USB Power Delivery 65W compatible, Touch signal, USB pass through) x 1, Display Port (DisplayPort 1.2, HDCP compatible) x 1, Mini D-sub 15-pin x 1, AV mini jack x 1, 3.5 mm-diameter mini stereo jack x 1 |
| Output Terminals | |
| Rear | HDMI x 1, 3.5 mm-diameter mini stereo jack x 1, S/PDIF x 1 |
| System Terminals | |
| Front | USB 3.0 Type A x 2, USB 3.0 Type B (for touch) x 1 |
| Rear | USB 3.0 Type A x 2, USB 3.0 Type B (for touch) x 1, LAN port (10Base-T/100Base-TX/1000BASE-T) x 1, RS-232C IN x 1 |
| System | |
| CPU | Arm® Cortex«> - A55 processor (quad core) |
| Memory | 4GB |
| Internal Storage | 16GB |
| Wireless LAN | IEEE802.11 ac/n/a/g/b (Use Wireless USB Adaptor) |
| Expansion Slot | OPS Slot (19 V, 4.74 A, 90 W) |
| Speaker Output | Speaker Output 15 W + 15 W w/front facing speakers |
| Mounting | 4 points, 800 x 600 mm pitch, MB screw |
| Power | |
| Power Consumption (Factory Setting (Shipment) / Max rating) | 260 W / 500 W |
| Network Standby | <0.5W |
| Power Supply | 100V - 240V AC, 50/60 Hz |
| Physical Specifications | |
| Net Dimensions (Without stand; W x H x D) | 1967.9 x 1170.2 x 87.1mm |
| Net Weight | 65kg |
| Sensors | |
| Ambient Light Sensor | N/A |
| Human Sensor | N/A |
| Temperature Sensor | Integrated |
| NFC Sensor | N/A |
| Environmental Conditions | |
| Operating Temperature | 5° - 35° C |
| Operating Humidity | 20-80% |
| Additional Specifications | |
| Limited Warranty | 3 Year Warranty incl. Backlight |
| Ships With | AC power cord, remote control unit, remote control unit battery (AM. size) x 2, set-up manual, blank sticker, cable clamp x 3, USB cable, pen tray, touch pen x 2, Wireless Adapter |
Expand All
Business Products Warranty Statement
This Sharp product is warranted against faults in material and manufacture for the period as stated in the table below.
In the event of any defect arising in the equipment during the warranty period, such repairs should only be carried out by the Dealer from which the unit was originally purchased or a Service Centre approved by Sharp to service this type of equipment These repairs would be carried out at no charge to the owner, subject to the conditions specified herein.
This warranty does not extend to defects or injuries caused by or resulting from causes not attributable to faulty parts or the manufacture of the product, including but not limited to, defect or injury caused by or resulting from misuse, abuse, neglect, lack of maintenance, accidental damage, improper voltage, liquid spillage, vermin infestation, software, or any alterations made to the product which are not authorised by Sharp.
Please retain your sales documentation, as this should be produced to validate a warranty claim. This warranty is in addition to and in no way limits, varies or excludes any implied rights and remedies under any relevant legislation in the country of sale.
This warranty does not cover transportation to and from the Sharp Approved Service Centre. Goods presented for repair may be replaced by refurbished goods of the same type rather than being repaired. Refurbished parts may be used to repair the goods. The repair of your goods may result in the loss of user generated data, please ensure that you have saved this data elsewhere prior to repair.
Warranty Period
- Data Projector 24 months (excluding lamps and air filters)
- Copier / Printer 6 months
- Electronic Cash Registers 12 months
- Facsimile 12 months
- Information Display Panel 36 months
- POS Terminals 12 months
- AL Copier 12 months
- Calculator 12 months
- Personal Organiser 12 months
Important Notice: This warranty applies to products sold in New Zealand.
