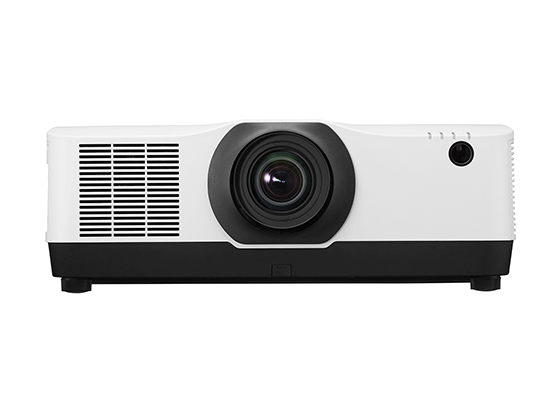

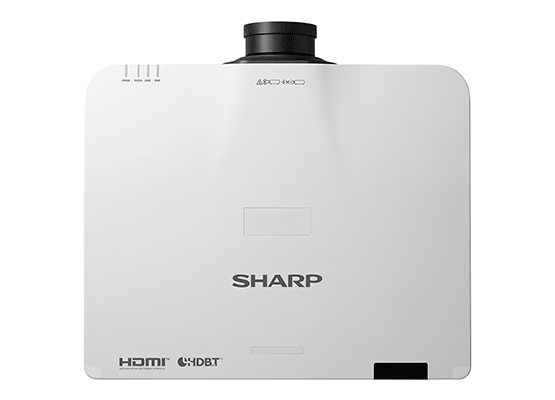

A-Series Large Venue Laser Projector
10,000 lumens of brightness, WUXGA resolution and 4K input support.
The Sharp XP-A104U is a professional large-venue laser projector designed for universities, lecture theatres, corporate spaces and immersive environments.
Featuring 10,000 lumens brightness, WUXGA resolution, 4K input support, 3LCD laser technology and long-life operation, it delivers reliable high-performance projection for demanding installations.
Get a Quote.

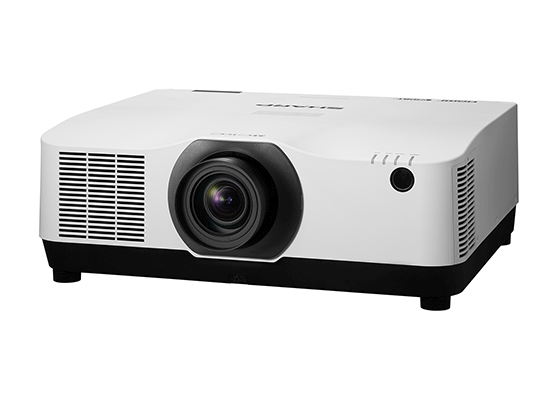

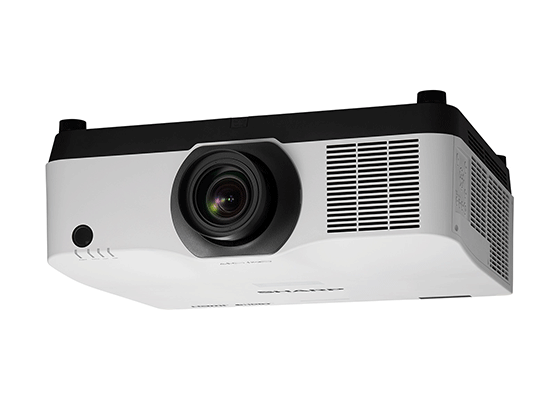

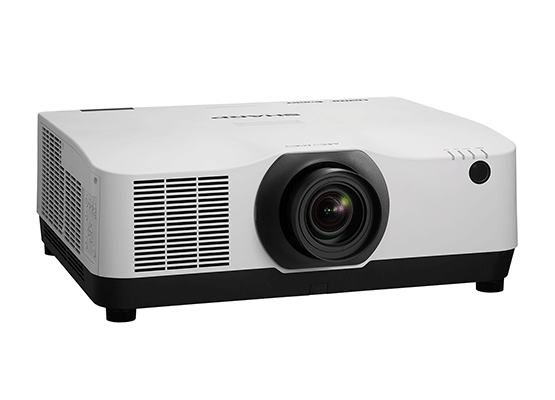

Sharp XP-A104U Professional Laser Projector
Ultra-Bright Projection for Large Venues, Lecture Theatres and Immersive Environments
The Sharp XP-A104U is a professional large-venue laser projector designed for environments where exceptional brightness, image quality and reliability are essential.
Delivering 10,000 lumens of brightness, WUXGA resolution and advanced laser projection technology, the XP-A104U provides powerful, detailed visuals for universities, lecture theatres, corporate venues, museums, simulation environments and large professional AV installations.
Built for demanding applications, the XP-A104U combines a sealed LCD optical engine, long-life laser technology, flexible lens options and advanced installation features to deliver consistent performance while reducing maintenance requirements.
As part of Sharp’s professional projector portfolio, the XP-A104U continues the trusted heritage of NEC professional projection technology, providing organisations with a reliable pathway for upgrading existing large-format projection systems.
Sharp A-Series Projectors at a Glance
| Feature | Sharp V-Series Advantage |
| Best suited for | Large venues, universities, lecture theatres and professional AV installations |
| Brightness | 10,000 lumens |
| Resolution | Native WUXGA (1920 × 1200) |
| Display technology | 3LCD laser projection |
| Contrast ratio | Up to 3,000,000:1 dynamic |
| Laser Life | Up to 20,000+ hours |
| Colour processing | Advanced colour processing for accurate, vibrant images |
| Maintenance | Sealed optical engine and filter-free design |
| Installation | Professional fixed installation with interchangeable lenses |
| Input support | 4K UHD compatibility |
| Ideal applications | Education, corporate, government, exhibitions and immersive spaces |
Designed for Large-Scale Visual Experiences
When Brightness, Reliability and Scale Matter
Large environments require more than a standard business projector. Lecture theatres, auditoriums and professional AV spaces need projection technology that maintains image clarity across large screens while operating reliably for extended periods.
The Sharp XP-A104U is engineered for:
- University lecture theatres
- Large classrooms
- Corporate auditoriums
- Government presentation spaces
- Museums and exhibitions
- Simulation and immersive environments
- Professional AV installations
Its high brightness output helps deliver clear, engaging visuals even in larger spaces with ambient lighting.
Sharp A-Series vs Traditional Lamp Projectors
| Feature | Sharp A-Series Laser Projector | Traditional Lamp Projector |
| Light source | Laser | Replaceable lamp |
| Maintenance | Filter-free sealed optical system | Regular lamp and filter servicing |
| Operating life | Up to 20,000 hours | Frequent lamp replacement required |
| Brightness consistency | Stable laser performance | Brightness reduces over lamp life |
| Installation suitability | Professional large venues | Limited large-scale applications |
| Total cost of ownership | Reduced maintenance and downtime | Higher ongoing operational costs |
Sharp XP-A104U
10,000-Lumen WUXGA Laser Installation Projector
The Sharp XP-A104U delivers professional-grade projection performance for demanding environments requiring high brightness, reliability and installation flexibility.
Key Benefits
- 10,000 lumens brightness for large spaces and high-impact visuals
- Native WUXGA (1920 × 1200) resolution
- 4K UHD input support
- 3LCD laser projection technology
- Up to 20,000+ hours laser operation
- Sealed optical engine for improved reliability
- Filter-free design to reduce maintenance
- Multiple motorised lens options for installation flexibility

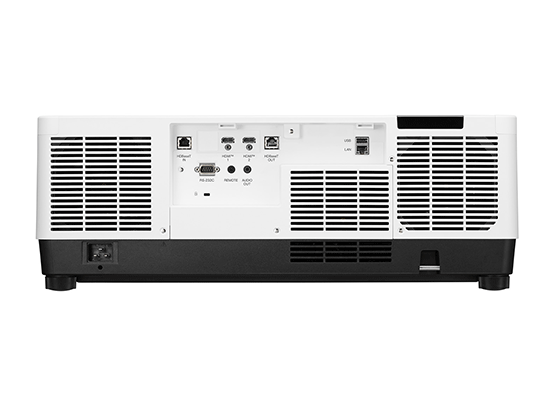

- Professional AV connectivity including HDMI, HDBaseT, LAN and RS-232
- Suitable for fixed installation environments
Specifications
| Light Output (Lumens) | |
| Normal | 7,300 Lumens |
| Center | 6,500 Lumens |
| Image & Display | |
| Screen Resolution | WUXGA (1920 × 1200) |
| Max Input Signal | Up to 4K UHD (3840 × 2160 @ 30Hz) via HDMI and HDBaseT |
| Aspect Ratio | 16:10 (Supports 4:3, 16:9 and 21:9) |
| Contrast Ratio (up to) | Up to 3,000,000:1 (Dynamic) |
| Laser Life | 20,000 hours (until 50% brightness |
| Screen Size (diagonal) | 30" – 300" (0.76 – 7.6m) |
| Projection Distance | 0.7 – 7.0m |
| Display Technology | 0.64" LCD |
| Laser Performance | |
| Laser Light Source | Laser Phosphor |
| Laser Life | Up to 20,000 hours (to 50% brightness) |
| Maintenance | Filter-free, low-maintenance laser operation |
| Video & Signal Compatibility | |
| Video Formats | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 4K UHD |
| PC Compatibility | VGA, SVGA, XGA, WXGA, SXGA, WUXGA |
| Mac Compatibility | Yes |
| Installation Features | |
| Professional Installation | Yes |
| Keystone Correction | +/- 30° horizontal (manual), +/-30° vertical (auto) |
| Installation Orientation | Front, Rear, Ceiling Front, Ceiling Rear |
| Wired LAN | RJ-45 (IEEE 802.3/802.3u 10BASE-T/100BASE-TX) |
| HDBaseT Support | Yes |
| Lens (Sold Seperately) | |
| Zoom | Motorized |
| Zoom Ratio XP44ML, XP50ZL, XP40ZL, XP41ZL, XP43ZL | 1.0x, 1.25x, 1.4x, 2.3x, 2.0x |
| Focus XP44ML XP60ZL XP40ZL XP41ZL XP43ZL | Motorized zoom / focus, F=20, f=6.27, 3.1kg Motorized zoom / focus, F=1.9 to 2.1, f=49.7 to 99.8mm, 2.5kg Motorized zoom / focus, F=2.0 to 2.5, f=13.3 to 18.6mm, 2.5kg Motorized zoom / focus, F=1.7 to 2.0, f=21.8 to 49.8mm, 1.7kg Motorized zoom / focus, F=2.2 to 2.6, f=49.7 to 99.8mm, 1.7kg |
| Shift | +50/-10% Vertical, +/-20% Horizontal |
| Laser | Laser Shutter |
| Connectivity | |
| External Control | RS-232 (D-Sub 9pin), IR, LAN, HDBaseT |
| Built-in Speaker | 16W (mono) |
| Power Requirements | 100-240V AC, 50/60 Hz |
| Input Current | 3.8A - 1.6A |
| Power Consumption (Normal / Long Life / Network Standby / Standby) | 315W / 260W / 8W / 0.3W |
| Installation Orientation | Floor/Front, Floor/Rear, Ceiling/Front, Ceiling/Rear |
| Product Dimensions (WxDxH) | 480 x 143 x 407 mm |
| Net Weight | 9.6 kg |
| Shipping Dimensions (WxDxH) | 591 x 259 x 491 mm |
| Gross Weight | 13 kg |
| Fan Noise | 29 dB normal / 22 dB silent |
| Inputs | |
| RGB1 (digital) | HDMI w/HDCP (V1.4) |
| RGB2 (digital) | HDMI w/HDCP (V1.4) |
| RGB3 (digital) | HDBaseT w/HDCP (V1.4) |
| Output Terminals | |
| Audio Out | Stereo Mini Jack (variable) |
| USB | |
| Type A | Power (2A) |
| Type B | Service |
| Operating Conditions | |
| Altitude | 0 to 2600 m, >1,600m req High Altitude (fan mode) |
| Temperature | 0-45°C |
| Humidity | 20 to 80% (Non-Condensing) |
| Storage Conditions | |
| Altitude | 0-12,000m (above sea level) |
| Temperature | -10 50°C |
| Humidity | 20% - 80% (Non-Condensing) |
Frequently Asked Questions
What is the Sharp V-Series projector range?
The Sharp V-Series is a range of professional laser projectors designed for education, corporate and large-space environments requiring high brightness, reliability and flexible installation.
Are Sharp projectors replacing NEC projectors?
Sharp professional projectors continue the legacy of NEC professional projection technology, providing organisations with a trusted pathway when upgrading existing NEC projector installations.
What is the best Sharp projector for lecture theatres?
The Sharp XP-V731U is designed for larger spaces such as lecture theatres, universities and professional presentation environments with its 7,300-lumen brightness and installation flexibility.
How long does a Sharp laser projector last?
Sharp V-Series laser projectors provide up to 20,000 hours of laser operation, reducing maintenance requirements compared with traditional lamp-based projectors.
Do Sharp projectors support 4K content?
Yes. The Sharp XP-V731U supports 4K UHD input via HDMI and HDBaseT while displaying content at its native WUXGA resolution.
