UN552VS Series Video Wall Display
The NEC MultiSync UN552V offers a combination of sleek design, advanced color accuracy, and reliable performance, making it an ideal choice for creating impactful video walls in various professional settings.
Its easy installation features and robust build ensure long-term value and consistent visual excellence.
Price on Application.

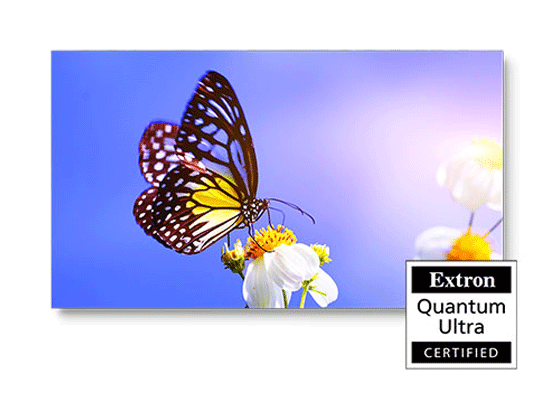

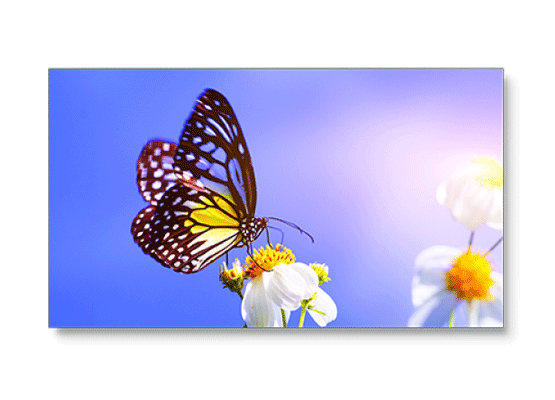

NEC MultiSync UN552V Ultra-Narrow Bezel Professional-Grade Display
Exceptional Visual Performance for Demanding Environments
NEC's 55" UN552V sets the standard for quality colour reproduction in video wall environments. Direct LED backlighting and factory calibration for intensity, gamma and RGB allows for ideal panel uniformity and an easy out-of-the-box experience. This display is integrated with the proprietary SpectraView Engine, which not only allows for ultimate color control but also allows for increased colour calibration capabilities including white copy, self calibration to an external sensor and manual CIE chromaticity adjustment for maximum control when colour matters most.
This display also includes both a DisplayPort and an HDMI Out connections for daisy chaining signals up to 4K UHD. This new generation of display received a full chassis upgrade with faster processing times, evolved daisy chain performance, and new TileMatrixing capabilities all while maintaining the minimal 3.5mm bezel gap.
Technical Highlights
- Bezel: Ultra Narrow 2.3 mm/1.2 mm
- Brightness: Up to 500 cd/m²
- Contrast Ratio: Up to 1200:1
- Viewing Angle: 178°
- Orientation: Landscape & Portrait
- Runtime: 24 hours/day, 7 days/week
- Warranty: 3-year warranty
Key Features
- Ultra-Narrow Bezel Design: Features a minimal bezel gap, ensuring a nearly seamless display when multiple units are tiled together.
- SpectraView Engine with Factory Calibration: Delivers precise color reproduction with factory calibration for brightness intensity, gamma, and RGB.
- Direct LED Backlighting: Provides uniform brightness and improved energy efficiency compared to traditional backlighting methods.
- Daisy-Chaining Capabilities: Supports DisplayPort and HDMI Out connections for daisy chaining signals up to 4K UHD, simplifying installation in large video wall setups.
- Advanced Thermal Management: Equipped with internal temperature sensors and fan-based technology to ensure optimal performance during 24/7 operation.
Ideal For:

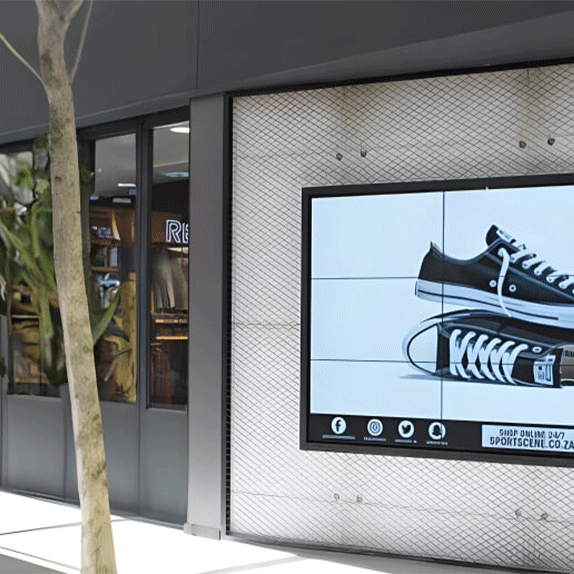

Retail & Malls
Create mesmerising large-format signage that cuts through the noise. Capture attention with vibrant, consistent colours that showcase products and promotions at their very best.
Command & Control
Depend on reliable, high-contrast visuals when every detail matters. The UN552V ensures critical information is displayed with precision for quick, confident decision-making.
Broadcast & Studios
Seamlessly display dynamic content for immersive viewer engagement. Its ultra-narrow bezel design keeps the focus on the content, delivering a truly uninterrupted visual experience.

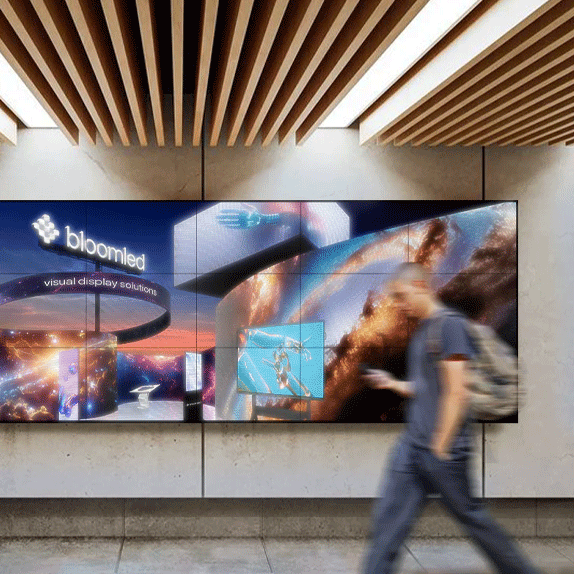

Corporate Lobbies & Public Hubs
Elevate communication with premium video installations. Impress visitors and engage audiences with striking, professional-quality visuals that enhance brand presence.
Specifications
| LCD Module | |
| Panel Technology | S-IPS |
| Viewable Image Size | 55" |
| Backlight Type | LED Direct-lit |
| Native Resolution | 1920 x 1080 |
| Brightness (Maximum) | 500 cd/m2 |
| Contrast Ratio (Typical) | 1100:1 (without local dimming) |
| Viewing Angle | 178° Vert., 178° Hor. (89U/89D/89L/89R) @ CR>10 |
| Aspect Ratio | 16:9 |
| Pixel Pitch | 0.5 mm |
| Displayable Colours | Over 1.07 Billion (8 bit + FRC) |
| Orientation | Landscape and Portrait |
| Runtime | 24/7 |
| Response Time (Gray to Gray) | 8 ms |
| Refresh Rate | 60Hz |

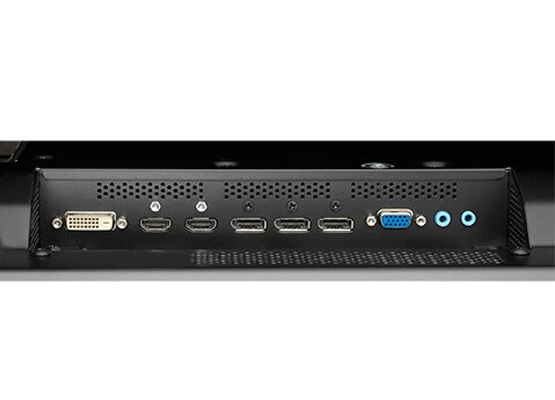

| Connectivity Input Terminals | |
| Digital | DisplayPort 1.1/1.2 x2, HDMI 1.4/2.0 x2, DVI-D |
| Analog | VGA 15-pin D-sub |
| Audio | Audio Mini-Jack x2, DisplayPort Audio, HDMI Audio |
| External Control | RS-232C, LAN (100Mb), 3.5mm Mini-Jack (IR Remote) |
| Data | MicroSD (Media Player), USB 2.0 (Media Player, USB (Service), USB Type-B (Upstream), USB x 2 (Both for Compute Module, 1 x 5V/2A Powered) |

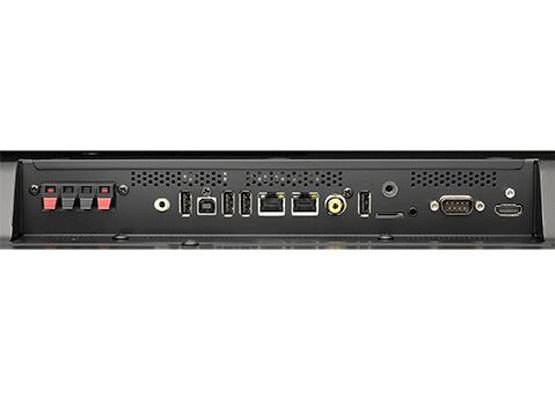

| Connectivity Output Terminals | |
| Digital | DisplayPort (Output DisplayPort1 and OPTION (DP)), HDMI (Outputs HDMI1, DVI and OPTION (TMDS)) |
| Audio | 3.5mm Mini-Jack, External Speaker Jack (2) |
| External Control | LAN (100Mb) |
| Power Consumption | |
| On | 110W |
| Power Consumption (max) | 165W (Brightness Max), 315W (All Functions Maxed) |
| ECO Mode Standby | <0.5W |
| Input Current | 3.6A @ 100V, 1.4A @ 240V |
| Physical Specifications | |
| Bezel Width (L/R, T/B) | 2.3 mm / 1.2 mm, 2.3 mm / 1.2 mm |
| Net Dimensions (without Stand; W x H x D) | 1213.4 x 684.2 x 103.8 mm |
| Net Weight (without Stand) | 28.1kg |
| VESA Hole Configuration | 400 x 400mm (4-hole, M6) |
| Signal Compatibility / Connectivity | |
| PC Signal Compatibility | Yes |
| Macintosh Signal Compatibility | Yes |
| Video | Analog RGB 0.7 Vp-p/75 Ohms (Analog), TMDS (Digital) |
| Sync | Separate sync: TTL Level (Positive/Negative) Composite sync: TTL Level (Positive/Negative) Composite sync on green: (0.3Vp-p negative 0.7Vp-p positive) |
| Environmental Conditions | |
| Operating Temperature | 5° - 40° C |
| Operating Humidity | 20-80% |
| Operating Altitude | 4200m (13,780ft) |
| Additional Specifications | |
| Warranty | 3-Years |
| Additional Features | Advanced thermal capabilities, Ethernet control and communication, RS-232 control and communication, landscape/portrait capable, carbon footprint meter, SpectraView Engine capabilities, scheduler with real-time clock and holiday mode, self-calibration to external color sensor, white copy function, screen saver function, 4K UHD daisy chain capabilities, optional human sensor, intelligent wireless data (Near Field Communications), Raspberry Pi compute module slot, expanded daisy chain (DP 1.2/HDMI 2.0), 6-axis color adjustment, metal rear cabinet, handles, variable picture modes, advanced video settings including noise reduction and adaptive contrast, input labeling, backlight adjust, frame comp capabilities, internal media player via microSD or USB, HDR emulation, aspect ratio control, LED direct-lit backlighting, OPS/expansion slot. |
| Ships With | 3.0m Power cord, 2.0m DisplayPort cable, 2.0m HDMI cable, LAN cable
|
Expand All
Business Products Warranty Statement
This Sharp product is warranted against faults in material and manufacture for the period as stated in the table below.
In the event of any defect arising in the equipment during the warranty period, such repairs should only be carried out by the Dealer from which the unit was originally purchased or a Service Centre approved by Sharp to service this type of equipment These repairs would be carried out at no charge to the owner, subject to the conditions specified herein.
This warranty does not extend to defects or injuries caused by or resulting from causes not attributable to faulty parts or the manufacture of the product, including but not limited to, defect or injury caused by or resulting from misuse, abuse, neglect, lack of maintenance, accidental damage, improper voltage, liquid spillage, vermin infestation, software, or any alterations made to the product which are not authorised by Sharp.
Please retain your sales documentation, as this should be produced to validate a warranty claim. This warranty is in addition to and in no way limits, varies or excludes any implied rights and remedies under any relevant legislation in the country of sale.
This warranty does not cover transportation to and from the Sharp Approved Service Centre. Goods presented for repair may be replaced by refurbished goods of the same type rather than being repaired. Refurbished parts may be used to repair the goods. The repair of your goods may result in the loss of user generated data, please ensure that you have saved this data elsewhere prior to repair.
Warranty Period
- Data Projector 24 months (excluding lamps and air filters)
- Copier / Printer 6 months
- Electronic Cash Registers 12 months
- Facsimile 12 months
- Information Display Panel 36 months
- POS Terminals 12 months
- AL Copier 12 months
- Calculator 12 months
- Personal Organiser 12 months
Important Notice: This warranty applies to products sold in New Zealand.
