PN-HW Series UHD Professional Displays
Professional 4K UHD displays, available in sizes in sizes from 43" to 65".
With 4K clarity, flexible installation, and user-friendly features, the Sharp PN-HW Series is the ideal entry into professional-grade display performance.
Designed for reliability and built with Sharp’s trusted quality, it offers everyday performance for businesses that want to make a big impression—without the big price tag.
Price on Application.
Sharp PN-HW Series 4K UHD Professional Displays
Big Impact. Slim Profile. Everyday Performance.
Deliver powerful visual messaging with the Sharp PN-HW Series—a cost-effective line of 4K UHD large-format displays designed to impress in commercial and corporate environments. Ranging in sizes from 43" to 65", these slim-profile displays are perfect for digital signage, presentations, and everyday business communication.
Whether mounted in portrait or landscape, the PN-HW Series is built for flexibility, clarity, and ease of use—bringing Sharp quality to more spaces, more affordably.
Technical Highlights
- Brightness: Up to 350 cd/m²
- Contrast Ratio: Up to 4000:1
- Viewing Angle: 178°
- Built-in Speakers: 2 x 10W
- Orientation: Landscape & Portrait
- Runtime: 16 hours/day, 7 days/week
- Warranty: 3-year
Sizes Available
PN-HW431 – 43"
PN-HW501 – 50"
PN-HW551 – 55"
PN-HW651 – 65"
Ideal for:

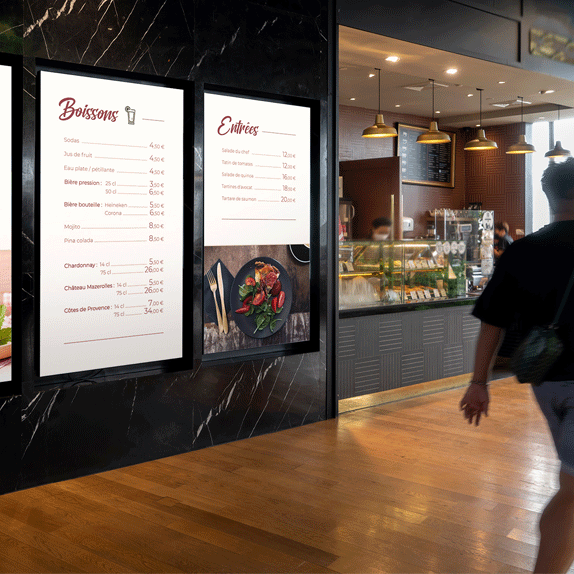

Retail & Hospitality
Eye-catching product displays, digital menu boards or guest welcome screens.
Corporate Offices
Display meeting room schedules, internal communications or presentations with clarity.
Education & Training Spaces
Present content in sharp detail for lectures, training sessions or public information displays.

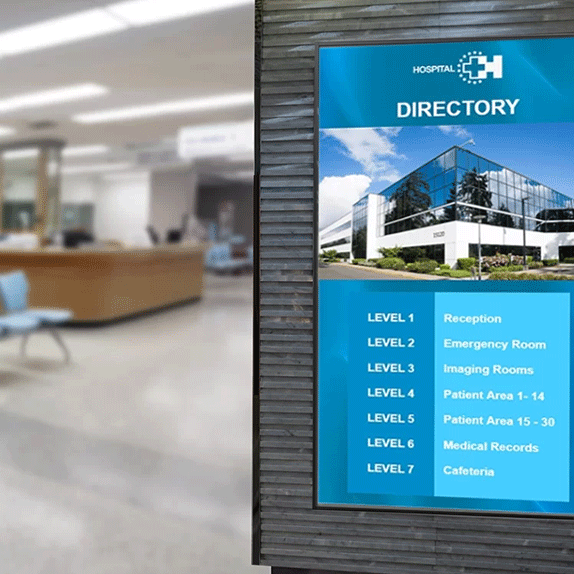

Healthcare & Reception Areas
Share important announcements, wayfinding or health messages clearly and professionally.
Key Features
4K Ultra HD Resolution: Showcase your content in stunning detail. With 3840 x 2160 resolution, the PN-HW Series delivers crisp images, sharp text, and vibrant colors—perfect for engaging viewers in retail, hospitality, or office environments.

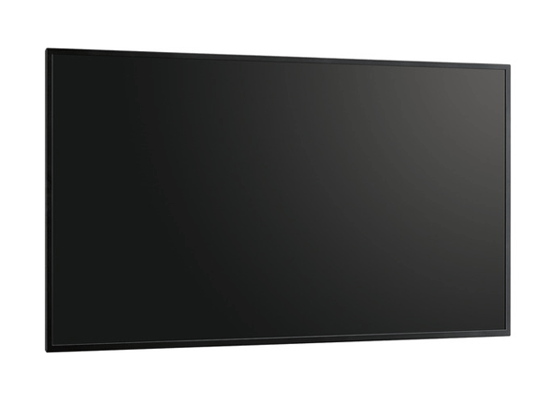

- Slim, Modern Design: With a narrow bezel and sleek profile, these displays seamlessly blend into any space. Designed to look good powered on or off, they provide a professional finish to modern interiors.
- Versatile Placement Options: Whether mounted vertically or horizontally, the PN-HW displays adapt to your space. Ideal for menu boards, welcome signage, and directional displays in both commercial and public-facing areas.
- Integrated Media Player (via USB): Run videos and image slideshows directly from a USB stick—no external hardware or complicated setup required. Plug, play, and go.
- Built-in 10W Speakers: With integrated audio, your content doesn’t just look great—it sounds great too. Ideal for video-based signage or ambient messaging.
- Multiple Connectivity Options: Equipped with HDMI, VGA and audio inputs, the PN-HW Series supports a wide range of sources for easy integration into any AV or IT environment.
Specifications
| LCD | |
| Backlight | LED, Direct lit |
| Active Screen Area | 941.184 x 529.416mm |
| Max. Resolution | 3840 x 2160 |
| Brightness (Typical) | 350 cd/m2 |
| Contrast Ratio (Typical) | 4000:1 |
| Max. Display Colours (approx.) | 1.07 Billion Colours |
| Viewing Angle | 178° Vert., 178° Hor. @ CR>10:1 |
| Aspect Ratio | 16:9 |
| Orientation | Landscape and Portrait |
| Response Time | 8 ms (grey to grey, avg.) |
| Runtime | 16/7 |
| Computer Input Input | |
| Video | Analogue RGB (0.7 Vp-p) [75 Ohm], HDMI™ |
| Synchronisation | Horizontal/vertical separation (TTL: positive/negative) |
| Plug & Play | VESA DDC2B |
| Power Management | VESA DPMS |
| Input Terminals | |
| Video | Mini D-sub 15-pin × 1, HDMI × 3 |
| Serial (RS-232C) | D-sub 9-pin × 1 |
| USB Port | USB (2.0-compliant) × 1 |
| Audio | 3.5 mm-diameter mini stereo jack × 1 |
| Output Terminals | |
| Rear | RCA pin (L/R) x 1 |
| IR | 3.5 mm-diameter mini stereo jack × 1 |
| Input / Output Terminals | |
| LAN | 10Base-T/100Base-TX × 1 |
| System Terminals | |
| Speaker Output | Speaker Output 10W + 10W |
| Power | |
| Power Consumption | 115W |
| Power Supply | 100V - 240V AC, 50/60 Hz |
| Physical Specifications | |
| Net Dimensions (Without stand; W x H x D) | 968 x 559 x 60mm |
| Net Weight | 9kg |
| Environmental Conditions | |
| Operating Temperature | 0° - 40° C |
Specifications
| LCD | |
| Backlight | LED, Direct lit |
| Active Screen Area | 1,095.84 × 616.41 mm |
| Max. Resolution | 3840 x 2160 |
| Brightness (Typical) | 350 cd/m2 |
| Contrast Ratio (Typical) | 4000:1 |
| Max. Display Colours (approx.) | 1.07 Billion Colours |
| Viewing Angle | 178° Vert., 178° Hor. @ CR>10:1 |
| Aspect Ratio | 16:9 |
| Orientation | Landscape and Portrait |
| Response Time | 8 ms (grey to grey, avg.) |
| Runtime | 16/7 |
| Computer Input Input | |
| Video | Analogue RGB (0.7 Vp-p) [75 Ohm], HDMI™ |
| Synchronisation | Horizontal/vertical separation (TTL: positive/negative) |
| Plug & Play | VESA DDC2B |
| Power Management | VESA DPMS |
| Input Terminals | |
| Video | Mini D-sub 15-pin × 1, HDMI × 3 |
| Serial (RS-232C) | D-sub 9-pin × 1 |
| USB Port | USB (2.0-compliant) × 1 |
| Audio | 3.5 mm-diameter mini stereo jack × 1 |
| Output Terminals | |
| Rear | RCA pin (L/R) x 1 |
| IR | 3.5 mm-diameter mini stereo jack × 1 |
| Input / Output Terminals | |
| LAN | 10Base-T/100Base-TX × 1 |
| System Terminals | |
| Speaker Output | Speaker Output 10W + 10W |
| Power | |
| Power Consumption | 130W |
| Power Supply | 100V - 240V AC, 50/60 Hz |
| Physical Specifications | |
| Net Dimensions (Without stand; W x H x D) | 1,124 x 646.5 x 68mm |
| Net Weight | 13kg |
| Environmental Conditions | |
| Operating Temperature | 0° - 40° C |
Specifications
| LCD | |
| Backlight | LED, Direct lit |
| Active Screen Area | 1,209.6 × 680.4 mm |
| Max. Resolution | 3840 x 2160 |
| Brightness (Typical) | 350 cd/m2 |
| Contrast Ratio (Typical) | 4000:1 |
| Max. Display Colours (approx.) | 1.07 Billion Colours |
| Viewing Angle | 178° Vert., 178° Hor. @ CR>10:1 |
| Aspect Ratio | 16:9 |
| Orientation | Landscape and Portrait |
| Response Time | 8 ms (grey to grey, avg.) |
| Runtime | 16/7 |
| Computer Input Input | |
| Video | Analogue RGB (0.7 Vp-p) [75 Ohm], HDMI™ |
| Synchronisation | Horizontal/vertical separation (TTL: positive/negative) |
| Plug & Play | VESA DDC2B |
| Power Management | VESA DPMS |
| Input Terminals | |
| Video | Mini D-sub 15-pin × 1, HDMI × 3 |
| Serial (RS-232C) | D-sub 9-pin × 1 |
| USB Port | USB (2.0-compliant) × 1 |
| Audio | 3.5 mm-diameter mini stereo jack × 1 |
| Output Terminals | |
| Rear | RCA pin (L/R) x 1 |
| IR | 3.5 mm-diameter mini stereo jack × 1 |
| Input / Output Terminals | |
| LAN | 10Base-T/100Base-TX × 1 |
| System Terminals | |
| Speaker Output | Speaker Output 15 W + 15 W w/front facing speakers |
| Power | |
| Power Consumption | 150W |
| Power Supply | 100V - 240V AC, 50/60 Hz |
| Physical Specifications | |
| Net Dimensions (Without stand; W x H x D) | 1,239 x 711.5 x 60mm |
| Net Weight | 16kg |
| Environmental Conditions | |
| Operating Temperature | 0° - 40° C |
Specifications
| LCD | |
| Backlight | LED, Direct lit |
| Active Screen Area | 1,428.48 × 803.52 mm |
| Max. Resolution | 3840 x 2160 |
| Brightness (Typical) | 350 cd/m2 |
| Contrast Ratio (Typical) | 4000:1 |
| Max. Display Colours (approx.) | 1.07 Billion Colours |
| Viewing Angle | 178° Vert., 178° Hor. @ CR>10:1 |
| Aspect Ratio | 16:9 |
| Orientation | Landscape and Portrait |
| Response Time | 8 ms (grey to grey, avg.) |
| Runtime | 16/7 |
| Computer Input Input | |
| Video | Analogue RGB (0.7 Vp-p) [75 Ohm], HDMI™ |
| Synchronisation | Horizontal/vertical separation (TTL: positive/negative) |
| Plug & Play | VESA DDC2B |
| Power Management | VESA DPMS |
| Input Terminals | |
| Video | Mini D-sub 15-pin × 1, HDMI × 3 |
| Serial (RS-232C) | D-sub 9-pin × 1 |
| USB Port | USB (2.0-compliant) × 1 |
| Audio | 3.5 mm-diameter mini stereo jack × 1 |
| Output Terminals | |
| Rear | RCA pin (L/R) x 1 |
| IR | 3.5 mm-diameter mini stereo jack × 1 |
| Input / Output Terminals | |
| LAN | 10Base-T/100Base-TX × 1 |
| System Terminals | |
| Speaker Output | Speaker Output 15 W + 15 W w/front facing speakers |
| Power | |
| Power Consumption | 115W |
| Power Supply | 100V - 240V AC, 50/60 Hz |
| Physical Specifications | |
| Net Dimensions (Without stand; W x H x D) | 1,458 x 835 x 82mm |
| Net Weight | 26kg |
| Environmental Conditions | |
| Operating Temperature | 0° - 40° C |
