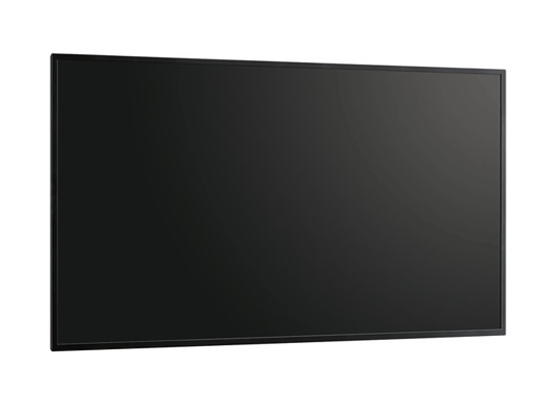

Home Digital Displays 43" PNHY431

43" PNHY431

Along with 4K Ultra-HD resolution, the PNHY series features a high-bright 500cdm screen and boasts a built-in USB media player. So, even without a connected PC, you can display photos and videos with amazing realism. This advanced slimline monitor can be installed in a variety of locations, depending on your signage needs. Whether you set it up in a retail, hospitality, or business setting, this monitor is built to make an impact.

Where to buy

A Product of Sharp

4K Monitors Built For Eye-Catching Signage

Engage, inform, and influence your audience with a Sharp professional LCD monitor. Coming in a range of sizes from 43 to 55 inches, the PN-HY431/HY501/HY551 series delivers your message with eye-catching detail at every scale.Along with 4K Ultra-HD resolution, it features a bright 500cdm screen and boasts a built-in USB media player. So, even without a connected PC, you can display photos and videos with amazing realism. This advanced slimline monitor can be installed in a variety of locations, depending on your signage needs. Whether you set it up in a retail, hospitality, or business setting, this monitor is built to make an impact.

A Product of Sharp

A Visual Boost to Presentations

Add impact to your business presentations by connecting your PC to a PN-HY series monitor. Text, graphs, pictures, and tables can all be displayed in stunningly detailed 4K Ultra-HD resolution.When you hook up a notebook PC using an HDMI or D-sub cable, the monitor wakes up from signal waiting mode and displays the content automatically. You can start your presentation right away.

A Product of Sharp

Signage with Built-in Media Player

The PN-HY series can play photo slideshows and videos—all without a PC or set-top box. Since you don’t need a large playback source, installation is easy and space-efficient. A built-in USB media player lets you play 4K Ultra-HD photos, full-HD videos, or music stored on a connected USB memory device. It can also play photos or videos automatically. For added security, the monitor comes with a USB drive cover to prevent theft of the data storage device.

Notes:
  1. Supported media formats: JPEG for still images, MP4 and TS for videos, and MP3 for audio.
  2. If you’re planning a large-scale signage installation, please consult your local authorised Sharp dealer or representative
Expand All
General

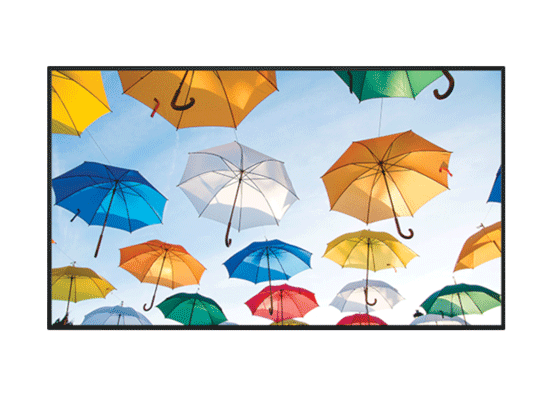

Landscape
Yes

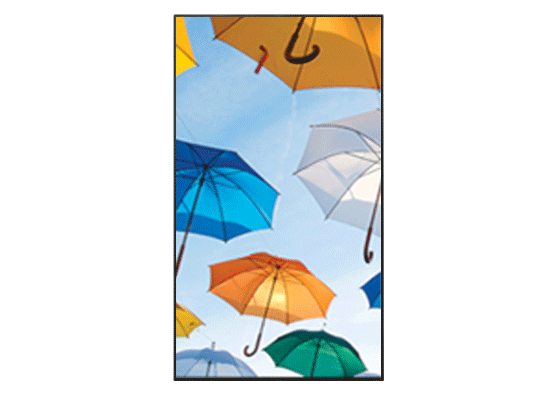

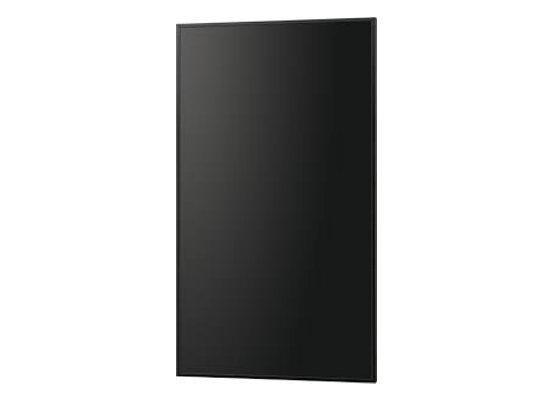

Portrait
Yes
Lie Flat
Yes
24 / 7 Operation
Yes
High Brightness (500+ cd/m2)
Yes
Brightness
Standard
Display Types
Commercial Display Panels
Resolution
Ultra HD 4K (3840x2160)
Size
40"+
System on chip
-
Stands
-
I/O Boards
-
Wall Mount
-
Other
-
Accessories
Main accessories
remote control unit, batteries, power cord, cable clamp, Portrait mount sticker kit
Computer Input
Plug & Play
VESA DDC2B
Power Management
VESA DPMS
Synchronisation
Horizontal/vertical separation (TTL: positive/negative)
Video
Analogue RGB (0.7 Vp-p) [75 Ω]
Enviornmental
Operating Humidity
20% to 80% RH (No condensation)
Operating Temperature
0ºC to 40ºC
Input Terminal
Audio (3.5mm stereo mini jack)
1
HDMI
3
RS-232C
1
USB
1
Component BNC
-
Component Video
-
Display Port
-
DVI-D
-
DVI-I
-
PC Analogue mini D-sub 15 pin
-
RCA pin (L/R)
-
Video BNC
-
With Options
-
LCD Panel
Active Screen Area
941 × 529 mm
Backlight
LED, edge lit
Contrast Ratio
1,200 : 1
Max. Brightness (average)
500 cd/m2
Max. Display Colours
1.07 billion colours
Max.Resolution
3,840 x 2,160 pixels
Pixel Pitch (H x V)
0.2451 × 0.2451 mm
Response Time
8ms (grey to grey, avg.)
Screen
43-inch class (108 cm diagonal) TFT LCD
Viewing Angle (H/V)
176º / 176º (CR > 10)
Output Terminal
3.5mm mini stereo jack
-
DisplayPort
-
Micro-USB
-
RCA pin(L/R)
-
Speakers
Built-in
10 W + 10 W
External
-
Touch Pen
Button
-
Communication
-
Touchscreen
Power Supply
100V - 240V AC, 50/60 Hz
Touch Technology
No
Driver
-
Multi Touch
-
PC Connection Port
-
Protection Glass Thickness
-
Video Colour System
Standard
LAN Port (10Base-T/100Base-TX) x 1
Others
Dimensions (W x D x H) (approx, display only)
973 × 63.5 × 561.2 mm
Mounting
VESA (4 points), 200 x 200 mm, M6 screw
Power Consumption
100 W
Weight
11.5Kg
