Home Digital Displays 43" PNHW431T

43" PNHW431T

The 43” interactive panel PNHW431T offers a fresh approach to boosting the dynamism of business and educational organisations.

It is ideal for meetings of two to six people held in small spaces—the so-called “huddle spaces” where a high proportion of meetings take place in the modern world. Making the most of huddle meetings can transform communications and accelerate business to a whole new level.

Where to buy

A Product of Sharp

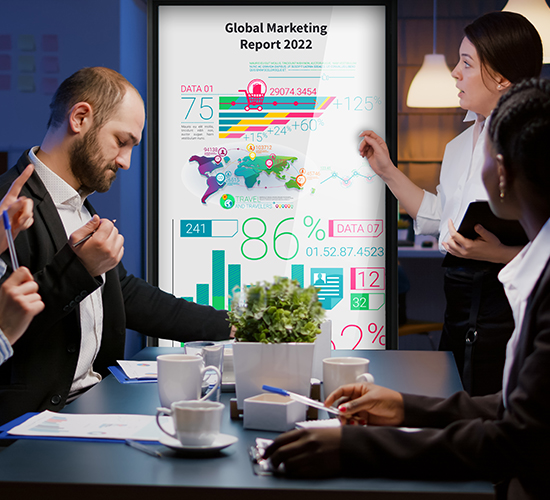

Ideal for small meetings in "huddle spaces"

With the PNHW431T, everyone can engage meaningfully in such small-group meetings by sharing onscreen information. Intuitive touchscreen operation, whether with a finger or pen, facilitates active collaborations and a lively exchange of opinions. And with the optional wireless board, you can also have BYOD meetings. Speedy, productive collaborations become a reality.

A Product of Sharp

Responsive and Intuitive Operation

The PNHW431T employs 20-point multi-touch functionality. With Sharp’s advanced IR touch technology, the PNHW431T offers extremely precise and smooth operation. The bundled touch pen facilitates communication by supporting smooth and accurate onscreen writing of fine text and lines. An onscreen touch menu lets you easily switch inputs, change between touch and pen modes, and access other frequently used functions.

A Product of Sharp

User-Friendly SHARP Pen Software

The easy-to-launch SHARP Pen Software user interface incorporates a menu comprising smartly arranged icons that provide easy access to pen settings and other useful functions. In overlay mode, you can write onscreen annotations or graphics directly onto photos, videos, PDFs, and common Microsoft® files.

Expand All
General
Landscape
Yes
Portrait
Yes
Wall Mount
Yes
Brightness
Standard
Display Types
Interactive White Boards
Resolution
Ultra HD 4K (3840x2160)
Size
40"+
Lie Flat
-
System on chip
-
24 / 7 Operation
-
High Brightness (500+ cd/m2)
-
Stands
-
I/O Boards
-
Other
-
Accessories
Main accessories
AC power cord, remote control unit, battery (AAA size) x 2, set-up manual, cable clamp x 3, USB cable, logo sticker, touch pen, CD-ROM
Computer Input
Plug & Play
VESA DDC2B
Power Management
VESA DPMS
Synchronisation
Horizontal/vertical separation (TTL: positive/negative)
Video
Analogue RGB (0.7 Vp-p) [75], HDMI, DisplayPort
Enviornmental
Operating Humidity
20% to 80% RH (No condensation)
Operating Temperature
5°C to 35°C
Input Terminal
Audio (3.5mm stereo mini jack)
1
HDMI
3
PC Analogue mini D-sub 15 pin
1
RS-232C
1
Component BNC
-
Component Video
-
Display Port
-
DVI-D
-
DVI-I
-
RCA pin (L/R)
-
USB
-
Video BNC
-
With Options
-
LCD Panel
Active Screen Area
941.1 x 529.4 mm
Backlight
LED, direct lit
Contrast Ratio
4,000 : 1
Max. Brightness (average)
350 cd/m2
Max. Display Colours
1.07 billion colours
Max.Resolution
2,840 x 2,160 pixels
Pixel Pitch (H x V)
0.2451 x 0.2451 mm
Response Time
8ms (grey to grey, avg.)
Screen
43-inch-class widescreen (108cm diagonal) TFT LCD
Viewing Angle (H/V)
178º / 178º (CR > 10)
Output Terminal
3.5mm mini stereo jack
1
DisplayPort
-
Micro-USB
-
RCA pin(L/R)
-
Speakers
External
10 W + 10 W
Built-in
-
Touch Pen
Communication
Passive stylus included
Button
-
Touchscreen
Multi Touch
20 points
PC Connection Port
USB 2.0 (Type C) x 1
Power Supply
Supplied from main unit;100V - 240V AC, 50/60 Hz
Protection Glass Thickness
Shock resistance: 500g at 130 cm
Touch Technology
IR Touch
Driver
-
Video Colour System
Standard
LAN Port (10Base-T/100Base-TX) x 1
Others
Dimensions (W x D x H) (approx, display only)
1007 x 70 x 598 mm
Mounting
VESA (4 points), 200 x 200 mm, M6 screw
Power Consumption
115 W
Weight
16 Kg
