70" PN70HC1E

Looking for a smart interactive display for your office or classroom? Meet the all-in-one Sharp PN70HC1E, a touchscreen LCD monitor that makes all your visual communications more lively and productive. The HC1 series opens up an affordable path to pristine 4K Ultra-HD resolution. A pre-installed launcher makes it quick and
easy to start up and use the interactive whiteboard. With the PN70HC1E your lecture, presentation, or lesson will be
more creative and involving.


Where to buy

A Product of Sharp

Stress-free Operation

The in-built IWB launcher means it’s easy to operate this all-in-one interactive whiteboard. You don’t even need to hook up a dedicated PC. As long as the main unit’s power is on, you can run the launcher. Then, with a single tap you can access the function you need. Switch to the whiteboard function to use the LCD monitor as a temporary writing board—no PC required. Even for first-time users, this simple write-and-erase function is a breeze to operate.


A Product of Sharp

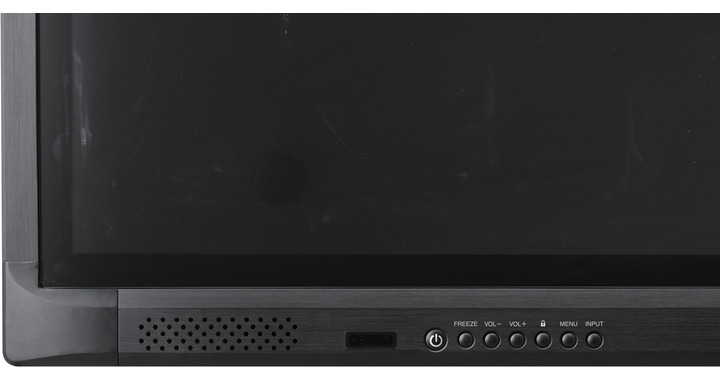

One-Touch Buttons

The PN70HC1E is designed with your convenience in mind. Buttons for frequently used functions such as power on/off, input switching, volume up/down, and freeze are neatly arranged on the front of the frame. The Freeze button: A press of this button lets you temporarily freeze or unfreeze the screen. While the display continues to show a paused onscreen image, you can stop and explain your point. Input button: At the touch of a button, a list of inputs appears on-screen. You can then instantly select the input terminal you want.

A Product of Sharp

Front terminals

These make it easy to access teaching materials or other content stored on sources connected via HDMI™ and USB.

Plus so much more!

Watch National Sales Manager for Visual Solutions, Rob Fisher, walk us through the impressive HC1 series of interactive whiteboards.

Book a demo
Expand All
General
Landscape
Yes
System on chip
Yes
Stands
Yes
Brightness
Standard
Display Types
Interactive White Boards
Resolution
Ultra HD 4K (3840x2160)
Size
70"+
Portrait
-
Lie Flat
-
24 / 7 Operation
-
High Brightness (500+ cd/m2)
-
I/O Boards
-
Wall Mount
-
Other
-
Accessories
Main accessories
AC power cord, remote control unit, remote control unit battery (AAA size) × 2, set-up manual, blank sticker, cable clamp × 3, USB cable, pen tray, SHARP Pen software (CD-ROM), touch pen × 2, wireless adapter
Computer Input
Synchronisation
Horizontal/vertical separation (TTL: positive/negative)
Video
Analogue RGB (0.7 Vp-p) [75], HDMI
Plug & Play
-
Power Management
-
Enviornmental
Operating Humidity
20% to 80% RH (no condensation)
Operating Temperature
5°C to 35°C
Input Terminal
Audio (3.5mm stereo mini jack)
x1
HDMI
HDMI (HDCP2.2 compatible, HDR10 supported) × 2
PC Analogue mini D-sub 15 pin
PC analogue: Mini D-sub 15-pin × 2,
USB
USB port (2.0-compliant, main unit) × 1
Component BNC
-
Component Video
-
Display Port
-
DVI-D
-
DVI-I
-
RCA pin (L/R)
-
RS-232C
-
Video BNC
-
With Options
-
LCD Panel
Active Screen Area
1,538.9 × 865.6 mm (60 9/16" × 34 1/16")
Backlight
LED, direct lit
Contrast Ratio
350cd/m2
Max. Display Colours
1.07 billion colours
Max.Resolution
3,840 × 2,160 pixels
Pixel Pitch (H x V)
0.40075 × 0.40075 mm 400 cd/
Response Time
8 ms (grey to grey, avg.)
Screen
70-inch-class (69 1/2-inch [176.6 cm] diagonal) LCD
Viewing Angle (H/V)
176°/176° (CR 10)
Max. Brightness (average)
-
Output Terminal
3.5mm mini stereo jack
-
DisplayPort
-
Micro-USB
-
RCA pin(L/R)
-
Speakers
Built-in
-
External
-
Touch Pen
Button
-
Communication
-
Touchscreen
Multi Touch
10 points
PC Connection Port
USB (2.0 compliant) (Type B) × 2 (Front × 1, Rear × 1)
Protection Glass Thickness
Thickness: Approx. 4.0 mm Shock resistance: 130 cm
Touch Technology
IR (infrared blocking detection method)
Driver
-
Power Supply
-
Others
Dimensions (W x D x H) (approx, display only)
1,629 × 100 × 990 mm (64 1/8" × 3 15/16" × 39")
Mounting
4 points, 600 × 400 mm pitch, M6 screw
Power Consumption
400W
Weight
54kg
